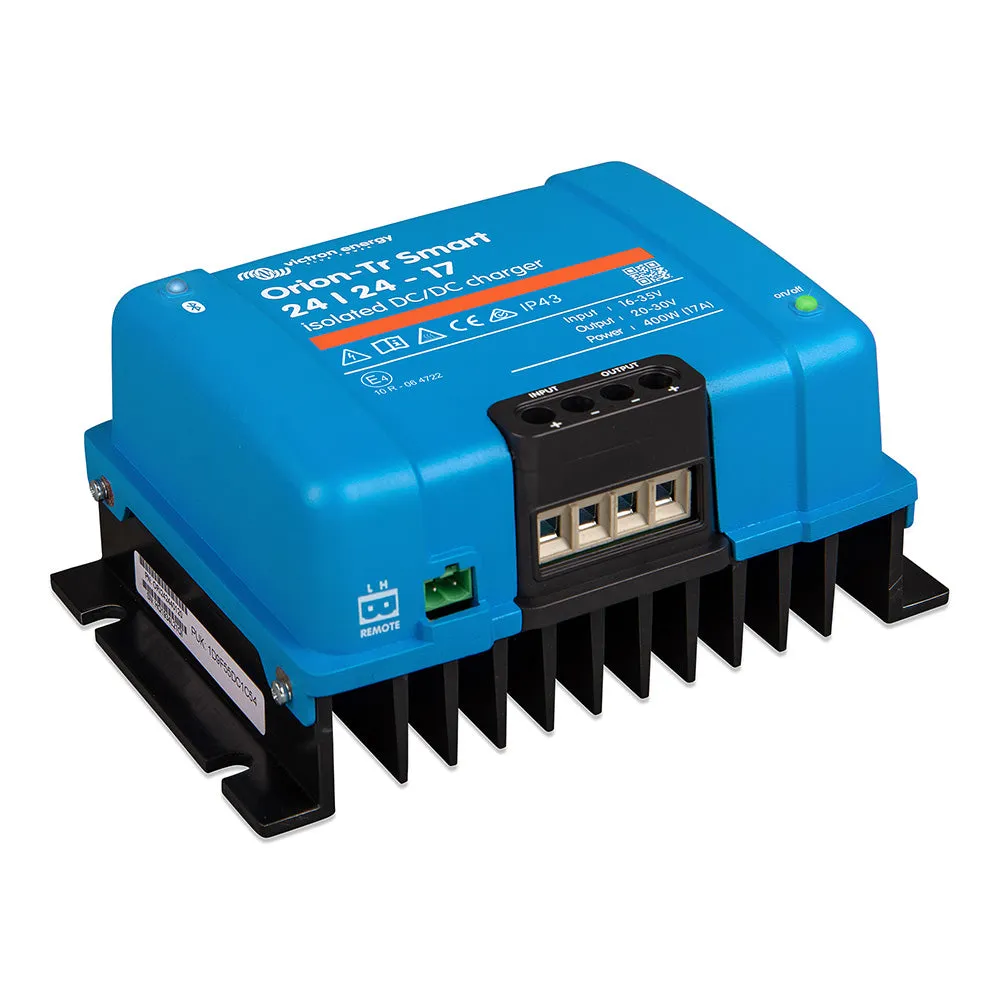

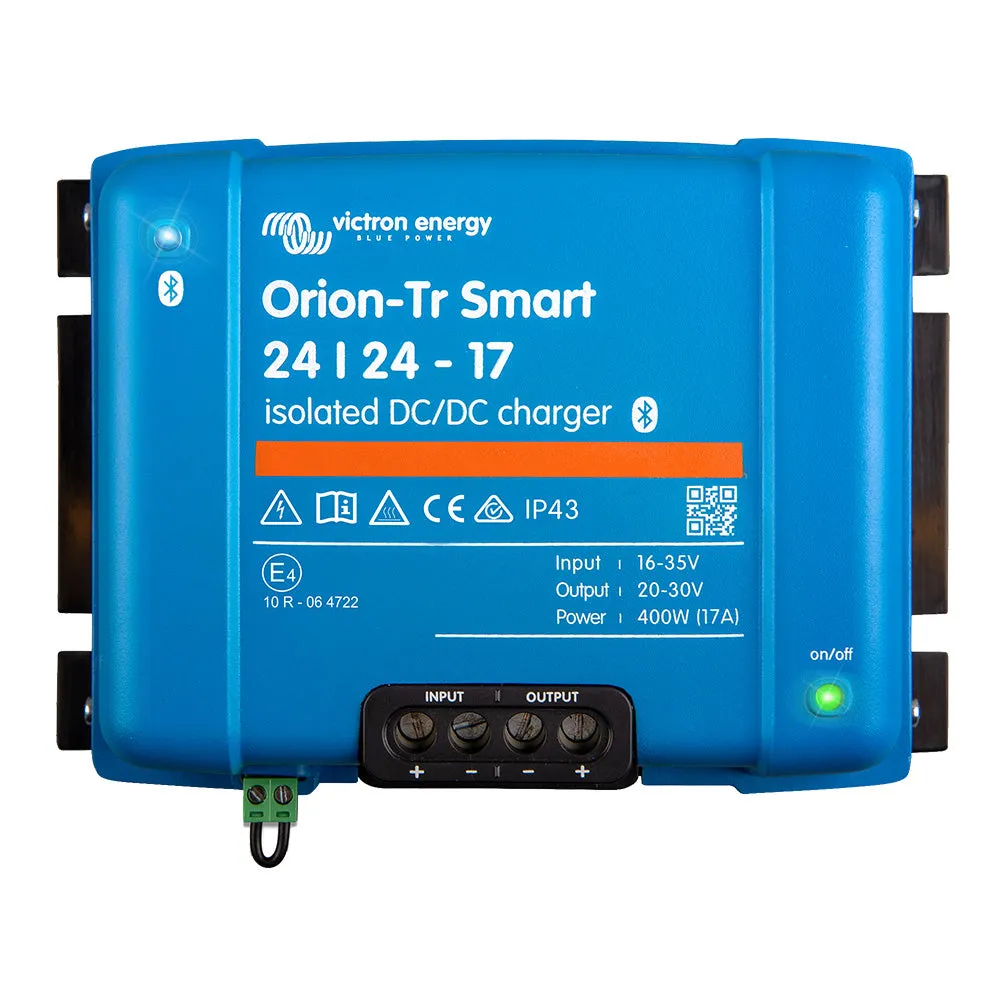

Victron Ori242440120 DC-DC Converter 24V to 24V 400W - Bluetooth Smart
The Victron Ori242440120 DC-DC Converter is a professional DC-to-DC adaptive charger with built-in Bluetooth connectivity. This isolated converter is designed to efficiently convert 24VDC to 24VDC with a power output of 400W and a continuous output current of 17A.
Features:
- Bluetooth Smart Enabled for easy monitoring and control
- Adaptive 3-Stage Charge Algorithm for optimal battery charging
- Smart alternator compatibility for use in vehicles with Euro 5 and Euro 6 engines
- Remote On/Off functionality for convenient operation
- Short circuit proof and can be paralleled to increase output current
- High temperature protection and IP43 protection
Specifications:
- Input Voltage Range: 20-35 V
- Under Voltage Shut Down: 14 V
- Under Voltage Restart: 15 V
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 20-30 V
- Output Voltage Tolerance: /- 0.2 V
- Output Noise: 2 mV rms
- Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
- Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
- Short Circuit Output Current: 40A
- Cont. Output Power at 25 Degrees C: 480 W
- Cont. Output Power at 40 Degrees C: 400 W
- Efficiency: 89%
- No Load Input Current: < 80 mA
- Standby Current: Less than 1 mA
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: -20 to 55 Degrees C
- Humidity: Max. 95% non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² AWG6
- Weight: 1.6 kg (3.5 lb)
- Dimensions: 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Safety Standards: EN 60950
- Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive Standards: ECE R10-5
