Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Cylindrical |
| Current Consumption | 200 mA (Max.) |
| Current, Switching | 200 mA |
| Dimensions | 1.969" L |
| Frequency, Switching | 1 kHz |
| Housing Material | Brass |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M18 Threaded Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | PNP-NO |

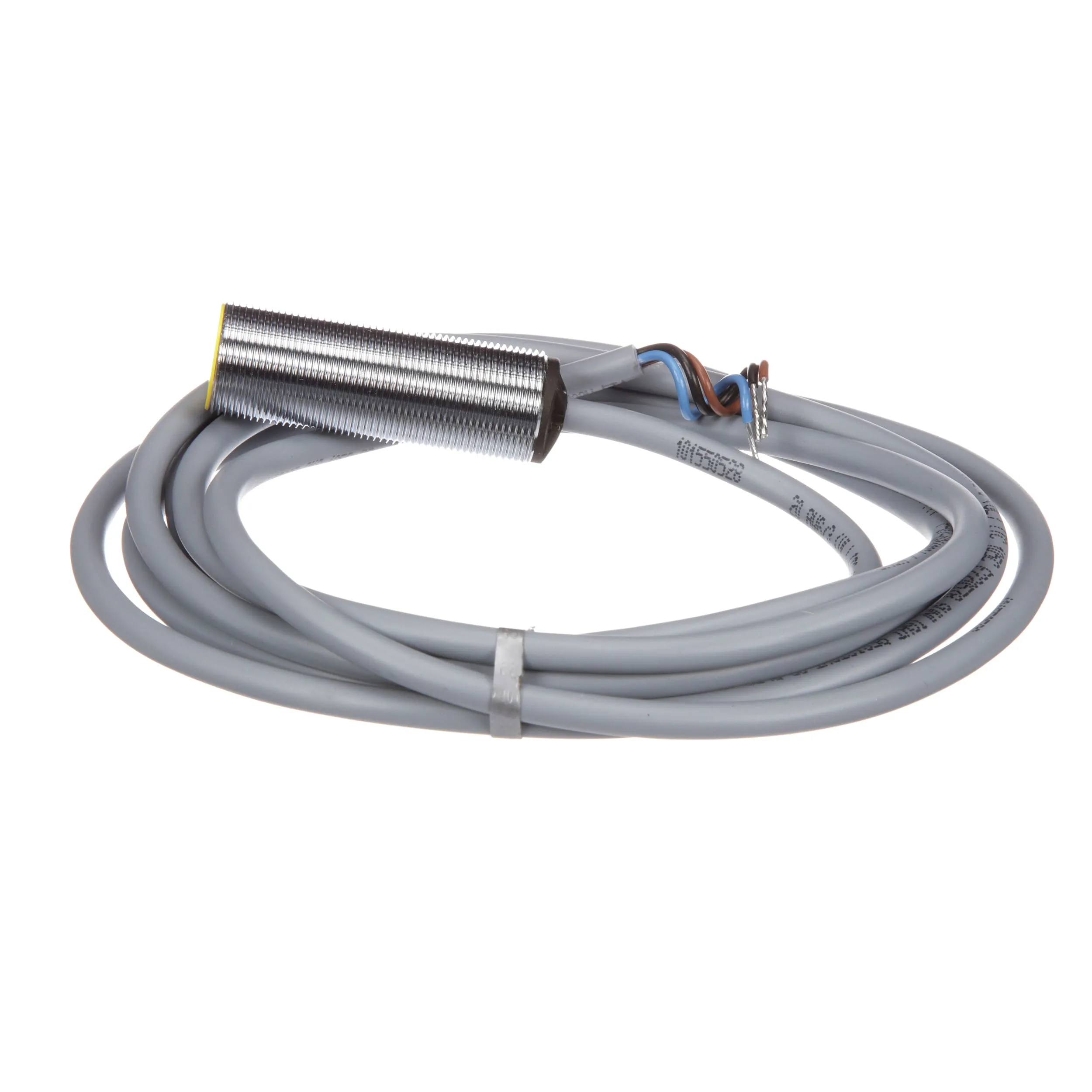

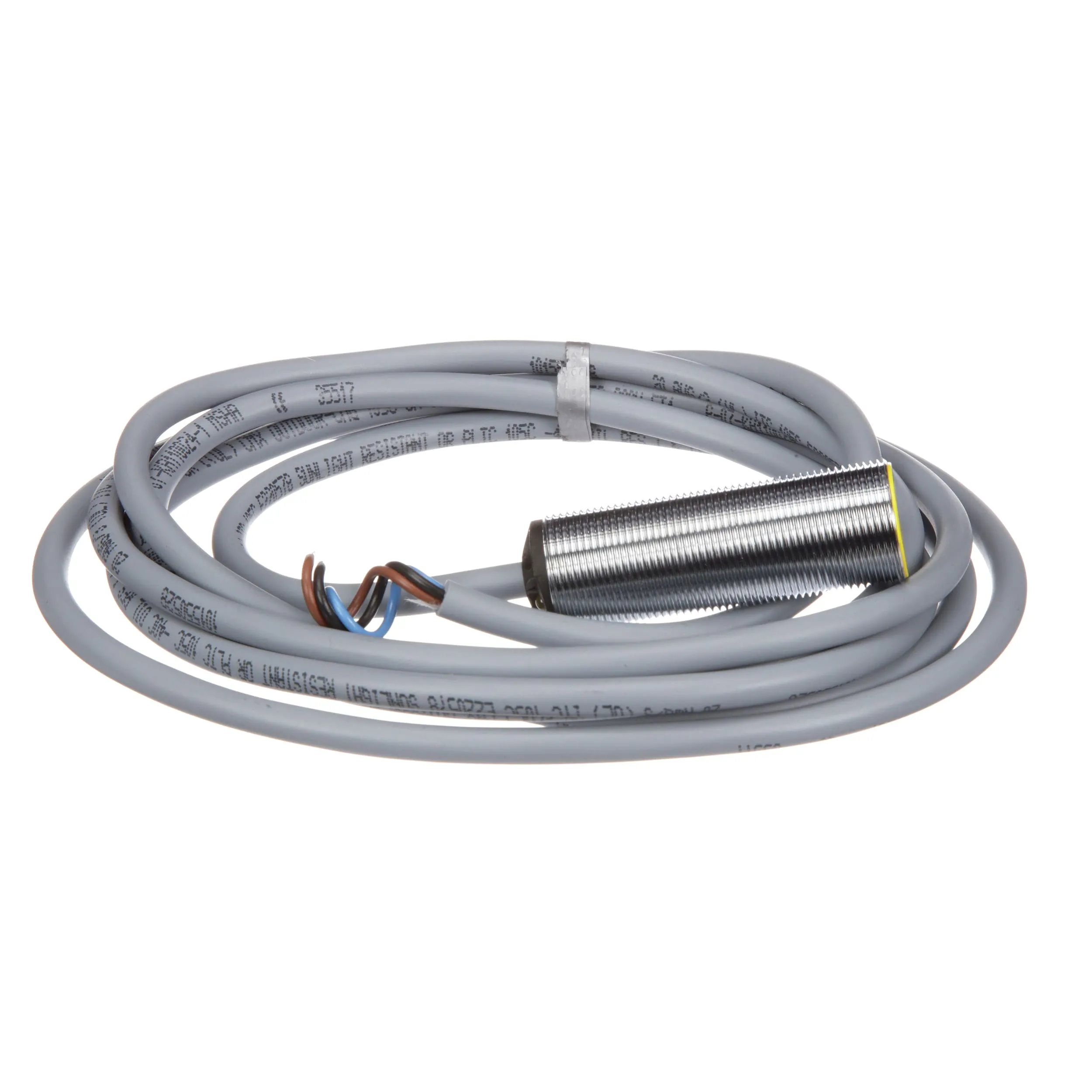

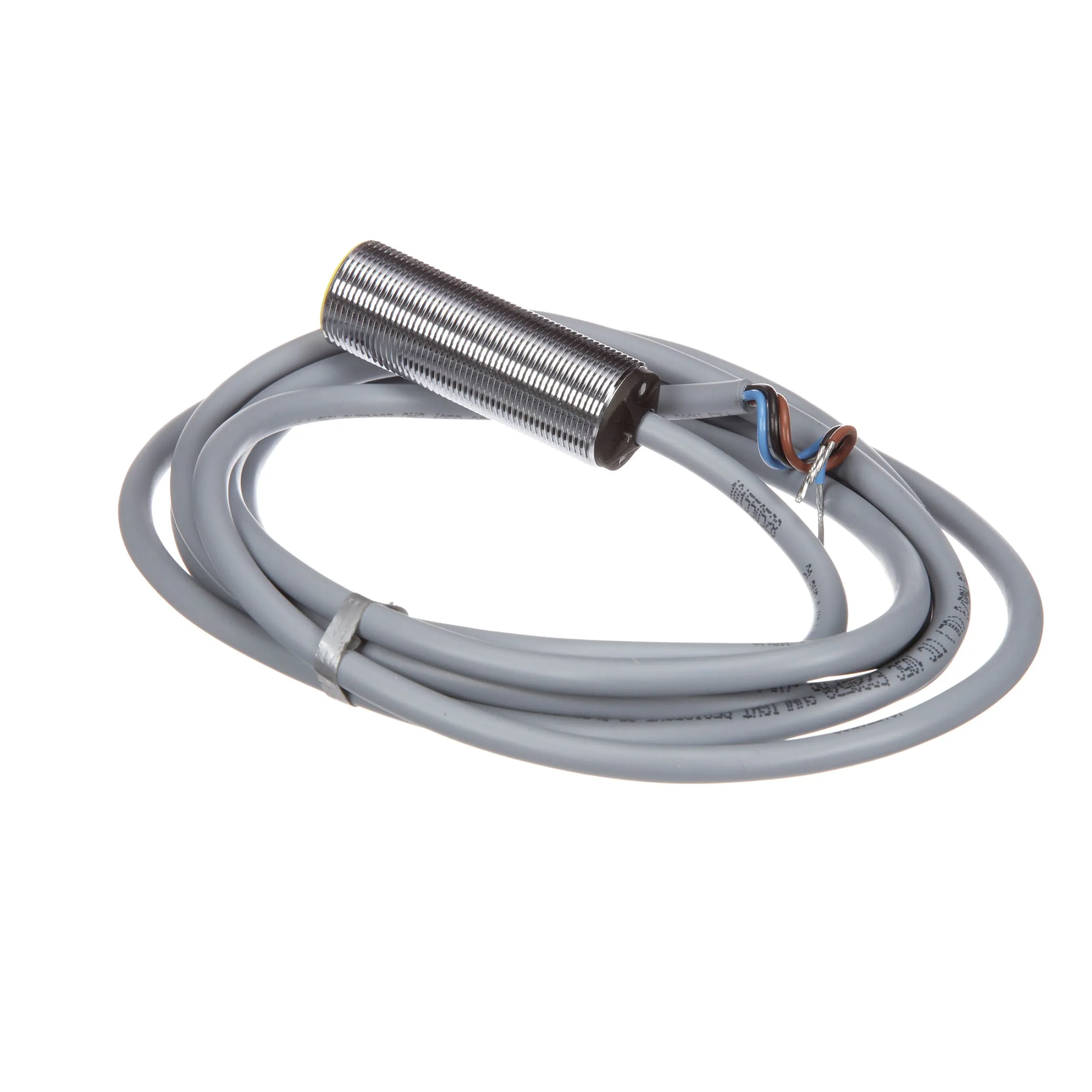

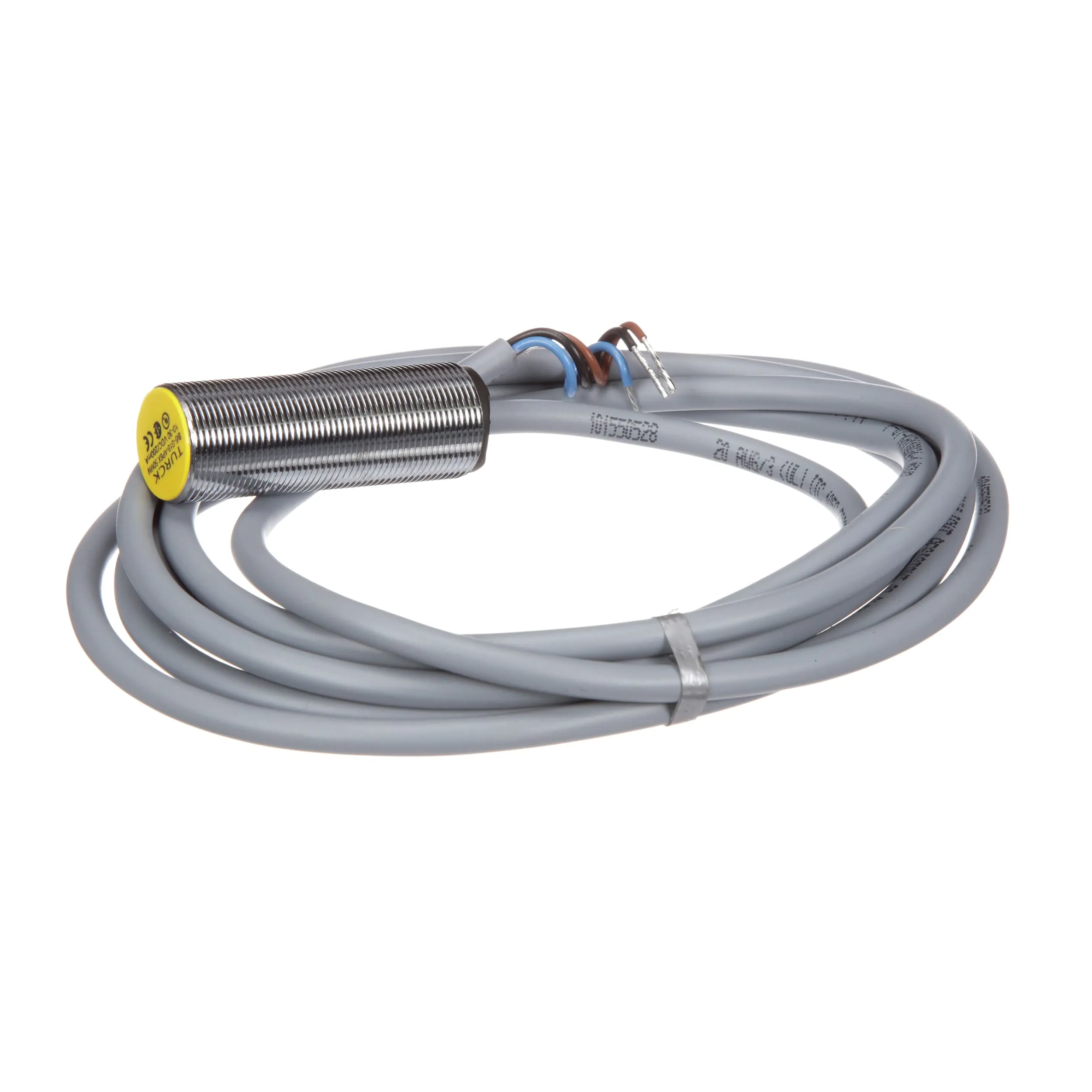

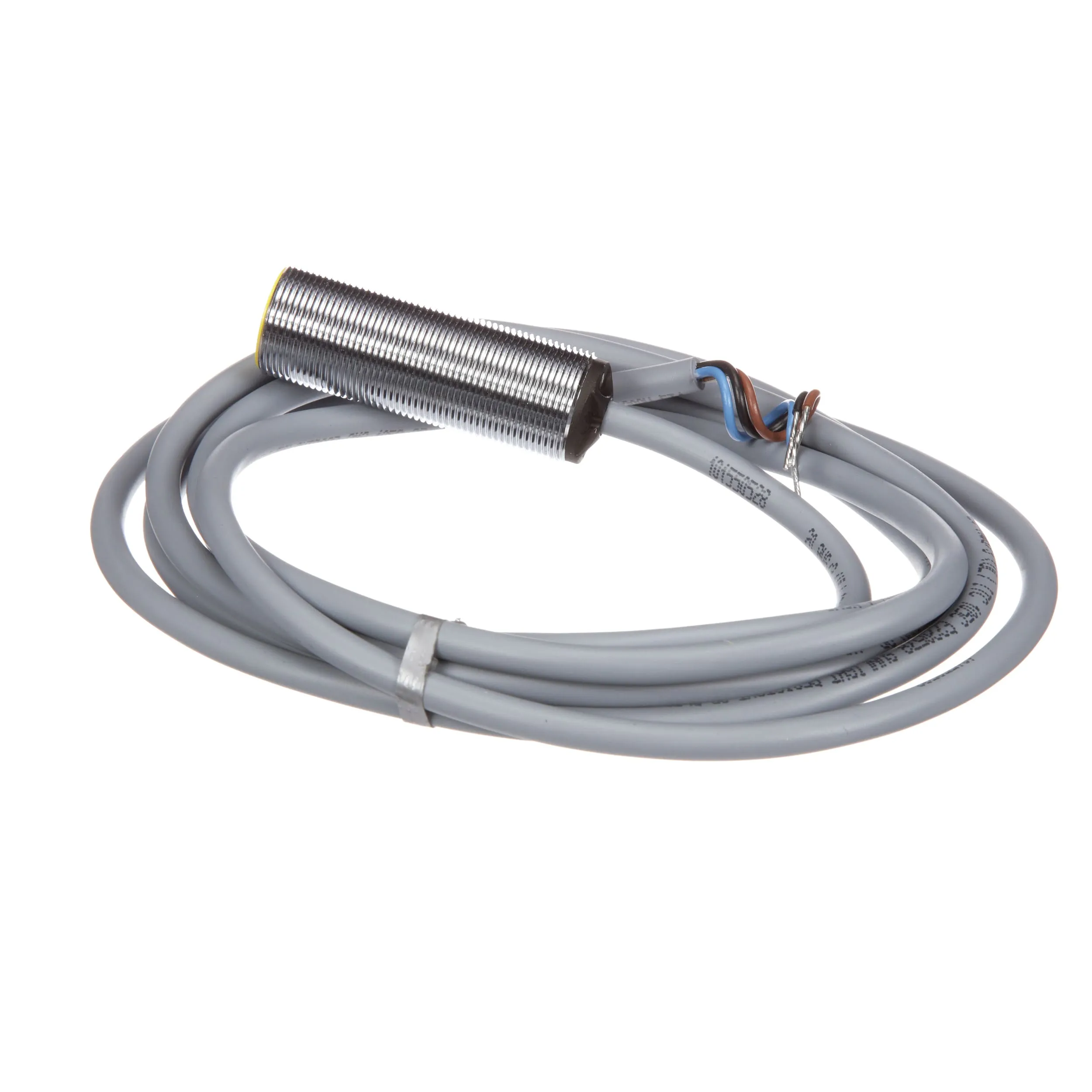

| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Shielded |
| Supply Voltage | 30 VDC |
| Termination | 3-Wire Cable |
Overview
Brass, 10 to 30 VDC Supply Voltage, 1500 Hz Frequency, Inductive Sensors
