| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 6609073-2 |
| Current Rating | 30 A |
| Dimensions | 2.56" H x 5.57" W x 11.62" L |
| Filter Type | EMC/RFI |
| Hipot Rating, Line to Ground | 1500 |
| Hipot Rating, Line to Line | 1450 VDC |
| Mounting Type | Panel Mount |
| Options | Ground Choke |
| Phase | 3 Phase |
| Primary Type | 2-Stage |
| Product Header | EMI/RFI Filter |
| Series | |
| Type | Filter |
| Voltage Rating | 440 VAC |
| Voltage, Operating | 440 VAC |
Overview

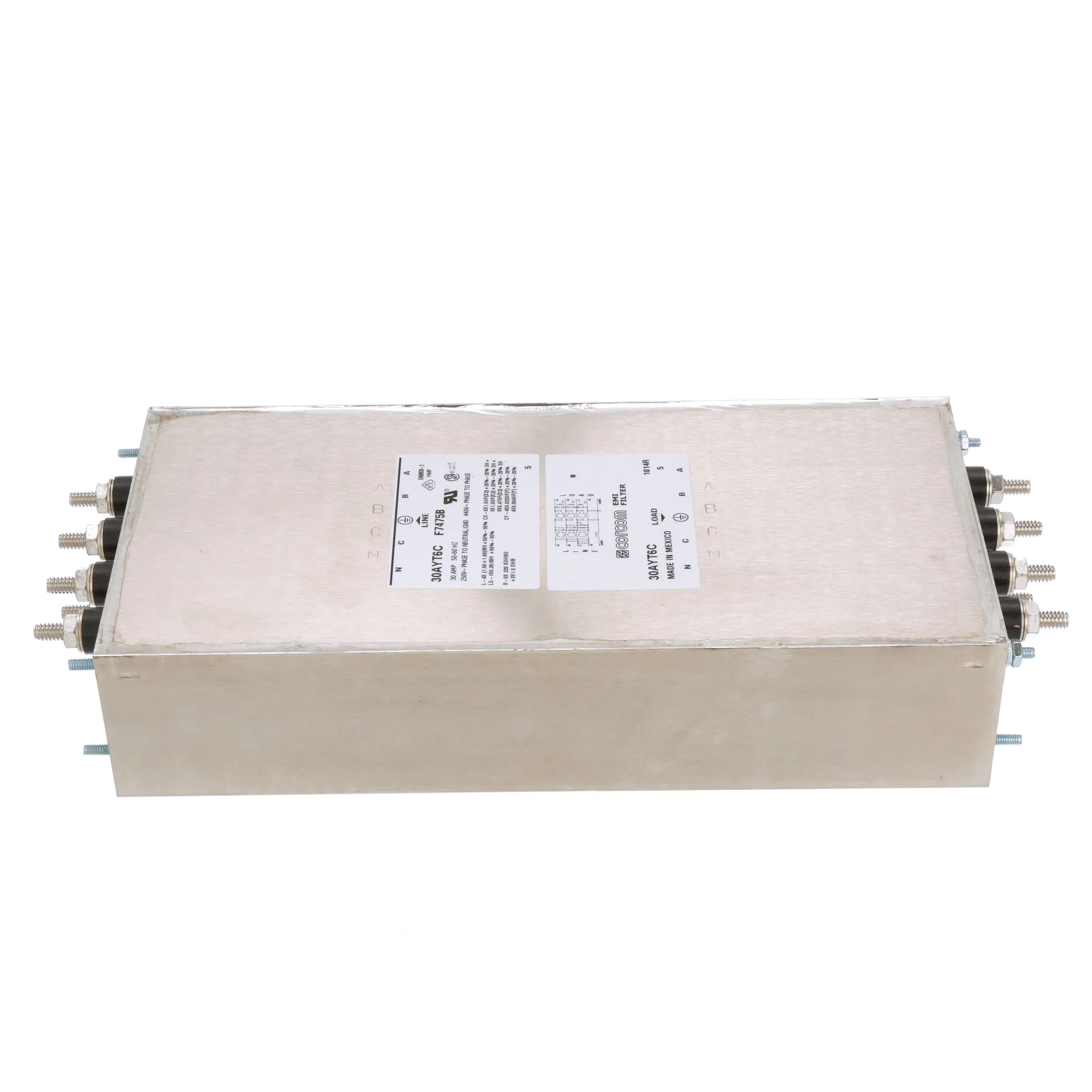

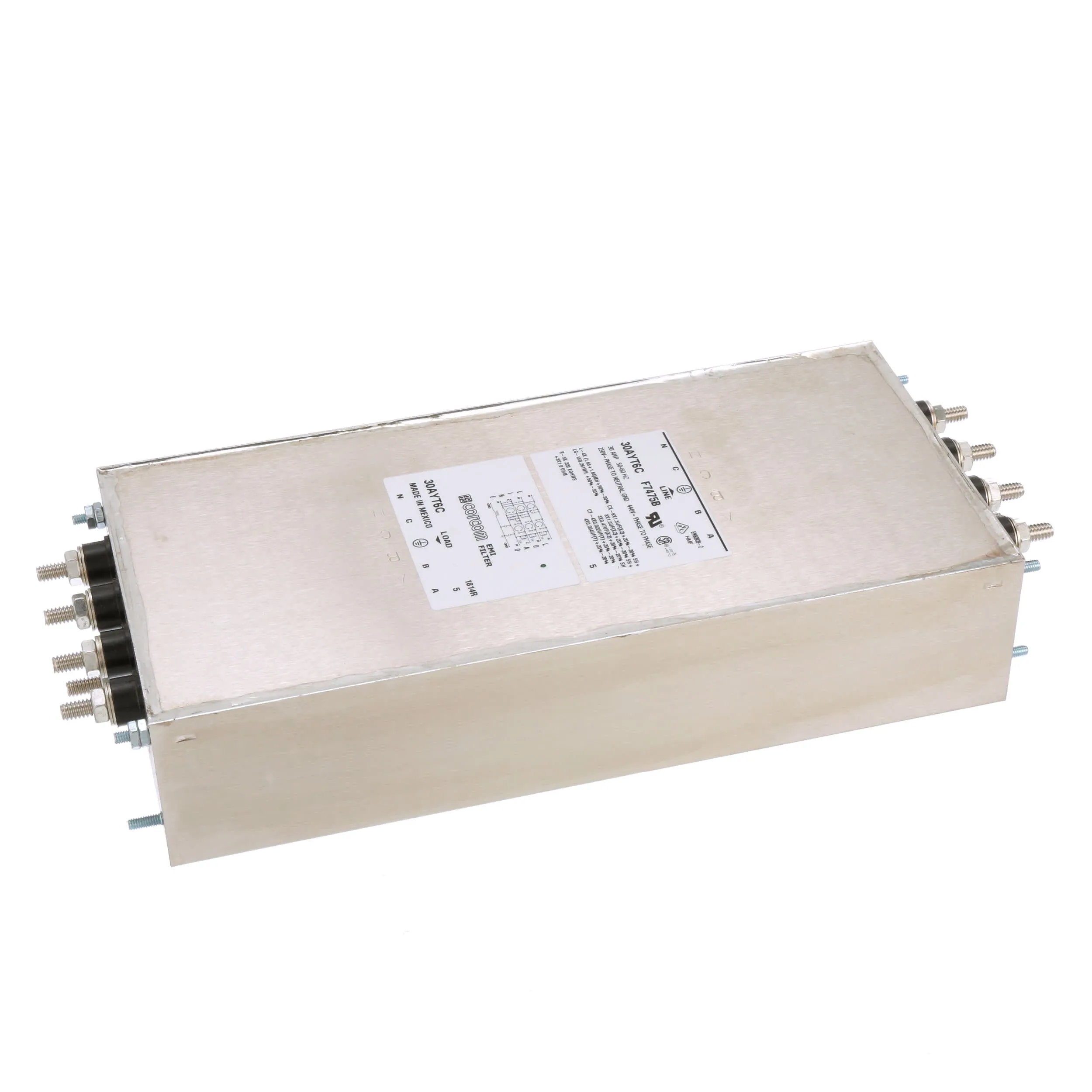

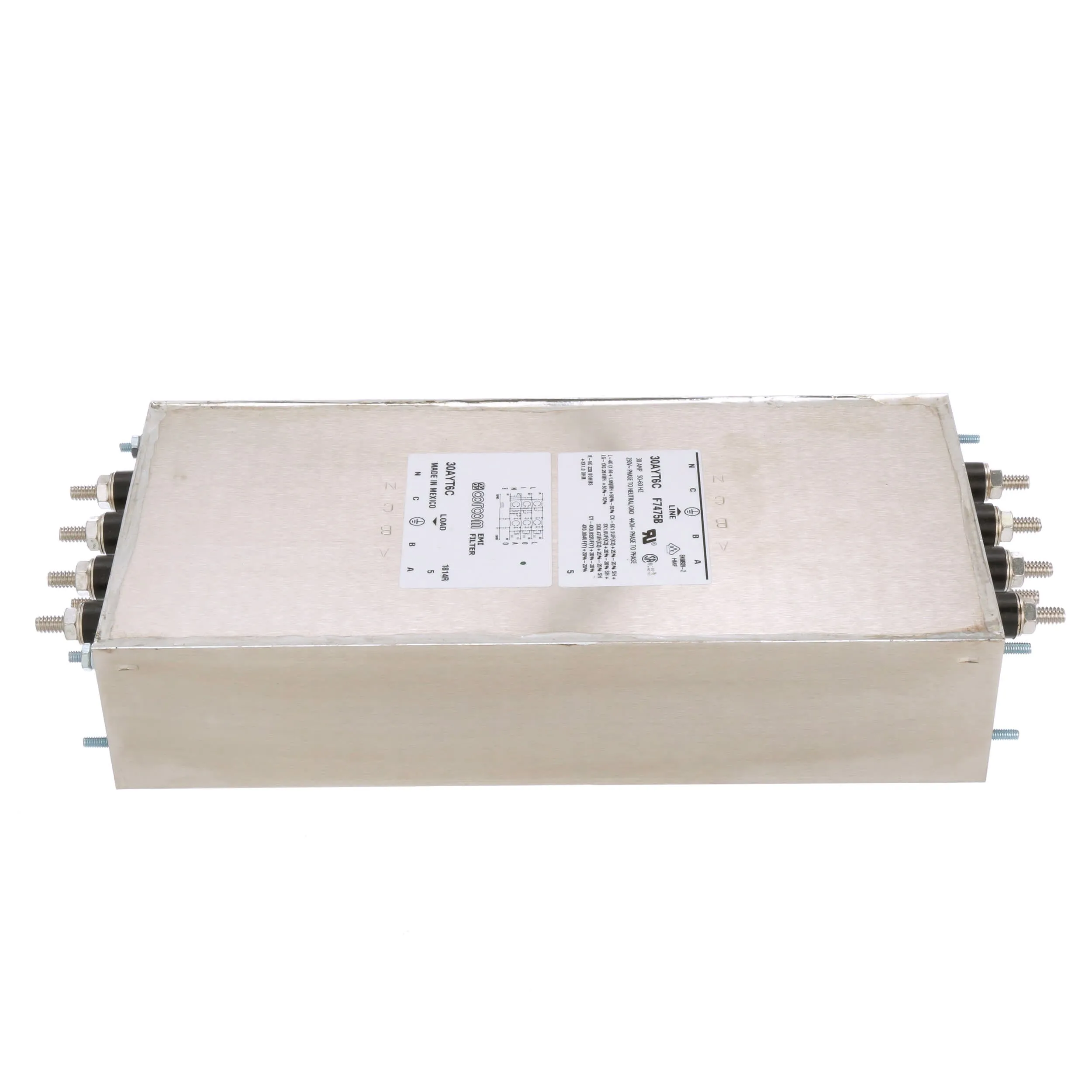

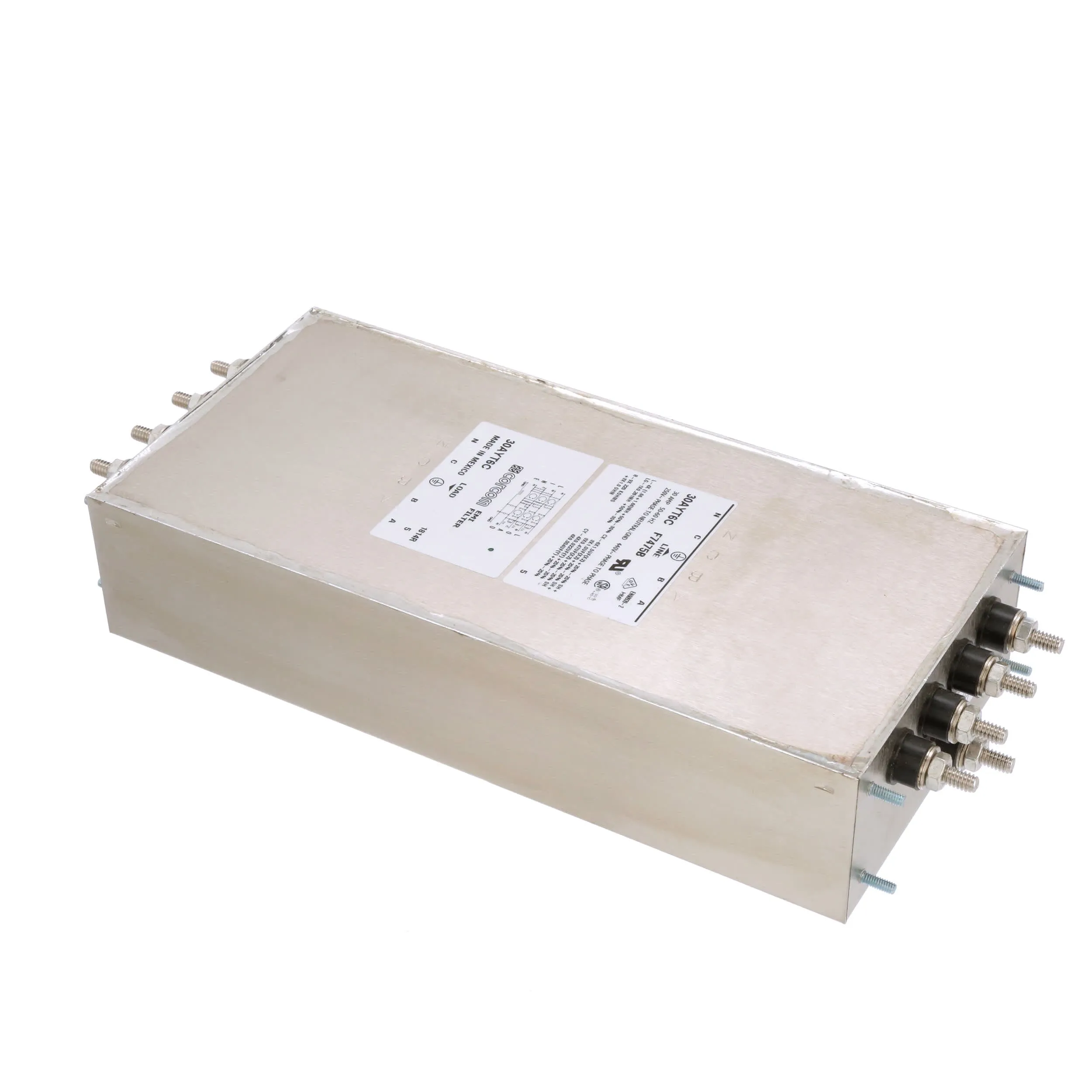

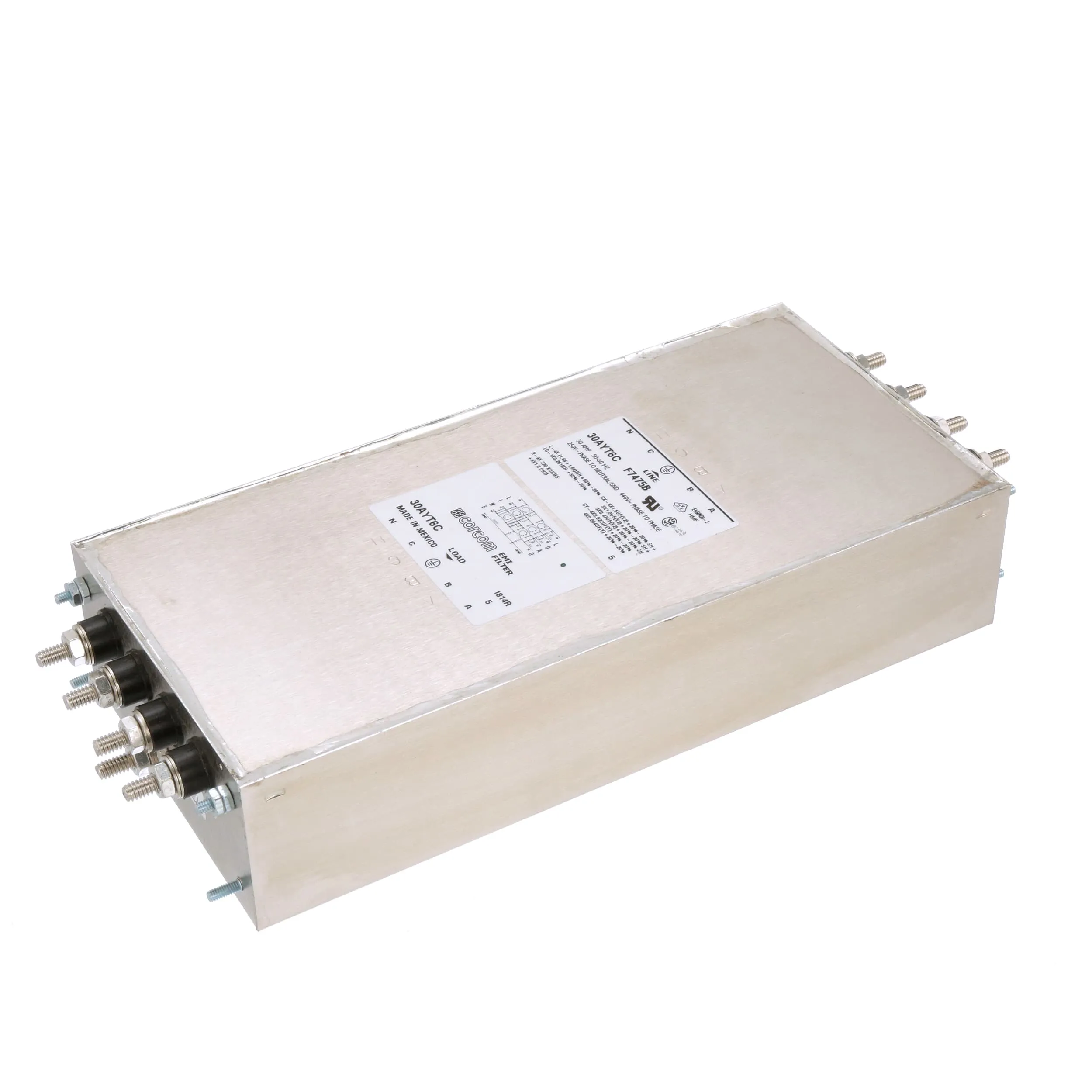

The A Series 3-phase filters are designed for 3-phase, 4-wire, WYE applications providing filtering in each of the three lines plus the neutral and ground line. These standard, high performance RFI power line filters may be used on a 3-phase DELTA system. The dual stage AYT provides higher performance, while the single stage AYP is good for lower noise environments. The mounting brackets and the end bell kits are sold separately. The end bell mounting kit is available in two sizes (20/30 A and 45/60 A). Maximum Leakage Current (Line-to-Ground): 1.4 mA @ 120 VAC, 60 Hz; 3.4 mA @ 250 VAC, 50 Hz. Hipot Rating (1 minute): Line-to-Ground — 1500 VAC; Neutral-to-Ground — 1500 VAC; Line-to-Neutral — 1450 VDC. Operating Frequency: 50/60 Hz. Rated Voltage: Phase-to-Phase — 440 VAC; Phase-to-Neutral/Ground — 250 VAC.
