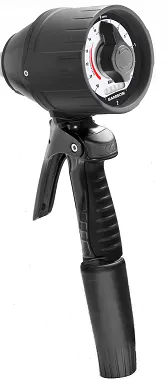

Samson 365 805 Meter with 369 223 Hose Outlet

MC8 Series Mechanical Dispense Valve:

• Samson mechanical metered control valves are used at the end of the hose assembly for measured dispensing of lubricants and anitfreeze solutions in tough, intensive use applications.
• 365 805 | MC8 Flexible 4-16 Qts Auto Tip-Lubricants

Markets Served:

• Fleet service, Lube Trucks, Mining equipment maintenance, Car and Truck Dealerships, Fast Lube and Maintenance Shops, Mass Transit Maintenance, Railroad

Features:

• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece poly-carbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
• Fully mechanical register.
• Simple and easy to read dial includes 5-digit totalizer
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
• The MC8 uses the CV11 SERIES control handle. This handle is flange coupled to eliminate the use of adapters and eliminate leaks.

Technical Specifications:

• Maximum Free Flow Rate | 8 gal/min (30 l/min)
• Maximum Working Pressure | 1,450 psi (100 bar)
• Fluid Inlet | 1/2" NPTF
• Fluid Outlet | 1/2" NPTF
• Accuracy | /- 0.65%
• Power Source -
• Wetted Materials | Aluminium, Zinc alloy, Stainless Steel, NBR, Brass, Steel, TPU, Polyamide

Dispense Valve Outlet:

• 369 223 | Flexible outlet with automatic non-drip tip
