Product Details
＋

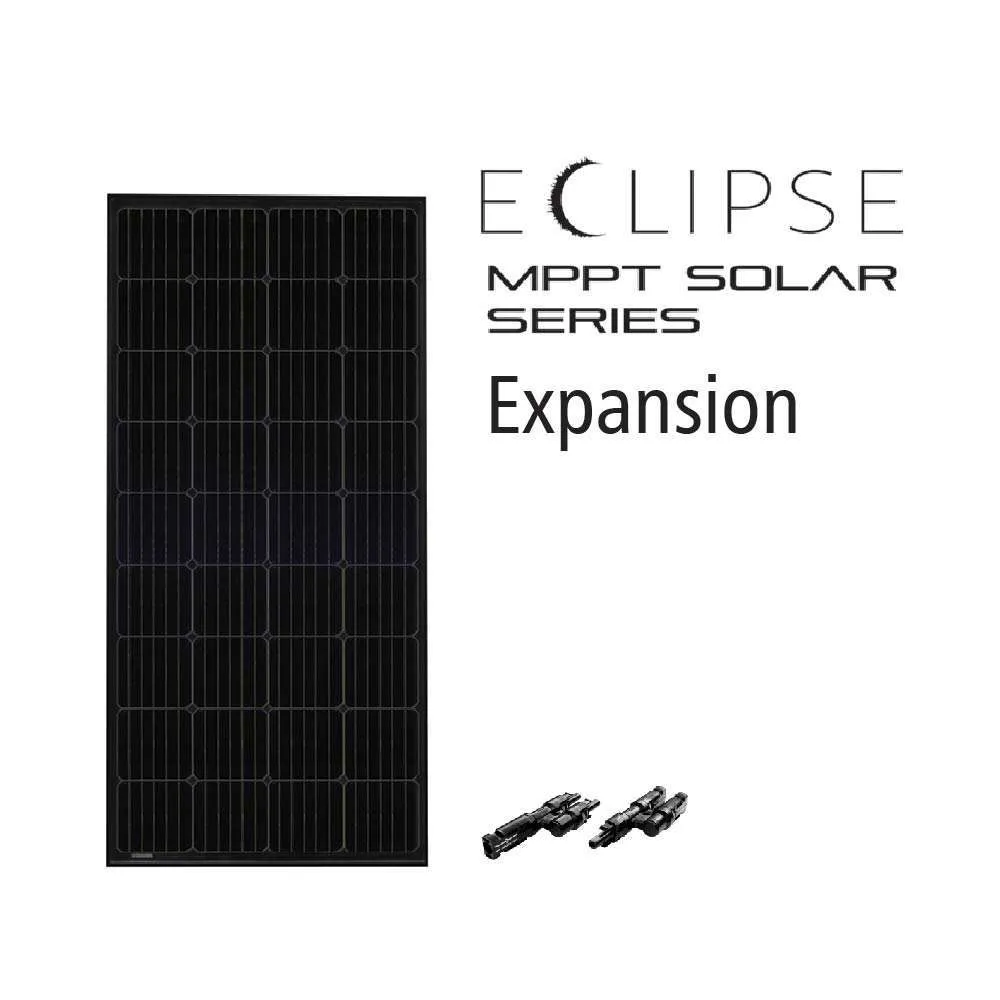

The RIGID Eclipse 200E Expansion adds another 200 watts of power to your full 200W Eclipse Solar Kit.
As your need for power grows, so can your RV solar system by adding additional modules to your existing Rigid Eclipse Solar Kit. Each Go Power! expansion kit includes a solar module, mounting hardware and expansion connections to quickly connect to the existing solar module on your RV roof. All Go Power! Solar Expansion kits are compatible with one another - 100 watts or higher.

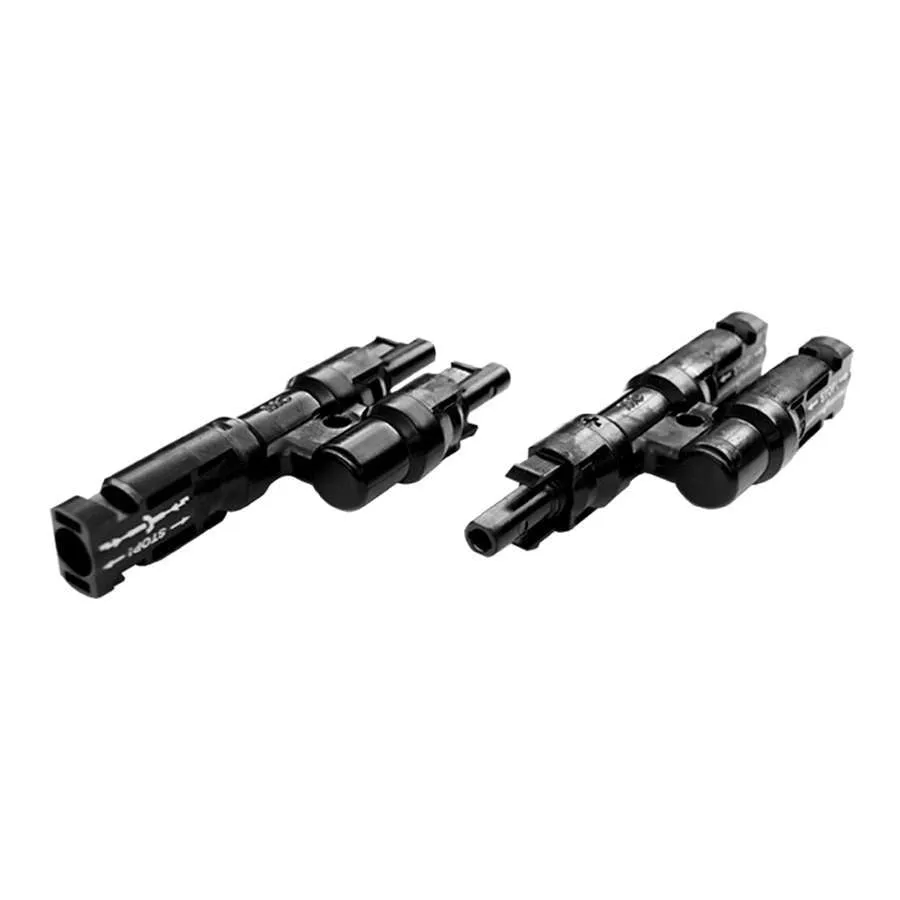

Go Power! Expansion kits feature (multi-contact) for parallel wiring between our solar kits. This interlocking system allows for a simple installation that is reliable and safe.
Kit Features
- Rigid, black-framed 200 watt, 9.6 amp solar module

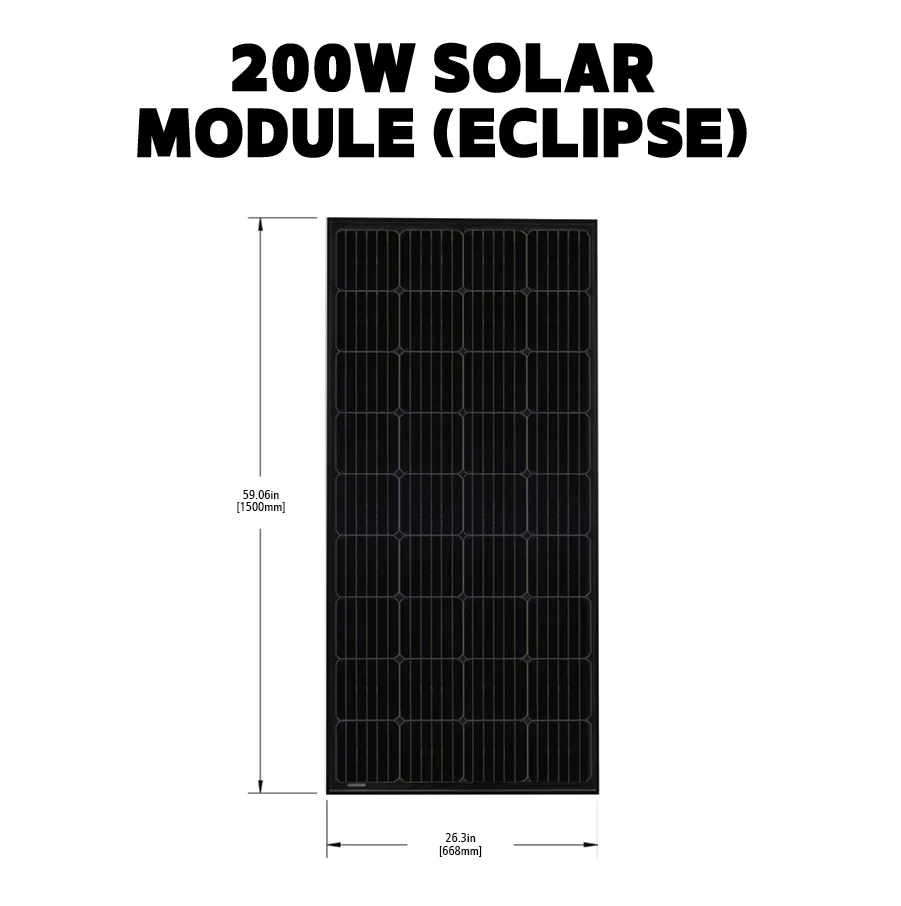

- Panel dimensions: 59.1 x 26.3 x 1.57 in
- 25-year power output panel warranty
- Includes
- Includes 25’ solar output cables and mounting hardware

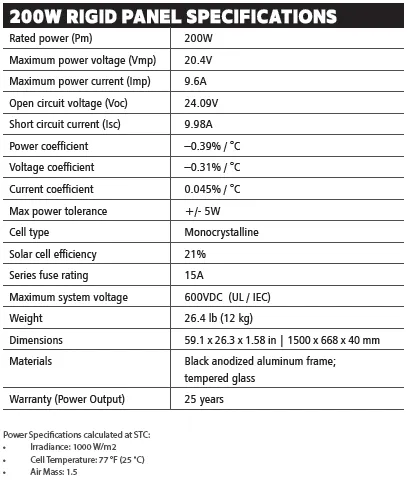

SPECIFICATIONS
Solar Module Specs
| Solar cell type | Monocrystalline |
Output power | 200 W |
Rated current | 9.6 A |
Rated DC voltage | 20.8 V |
| Open-circuit voltage | 24.3 V |
| Module efficiency | 21% |
| Connectivity | Solar Branch Connectors |
| Frame type | Black anodized aluminum frame |
| Certifications | CE |
| Dimensions | 59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm |
Weight | 26.4 lbs / 12 kg |
Warranty | 25 years power output (module) |
