Name: RF Explorer model WSUB1G
SKU: 1416481

Product Details ＋

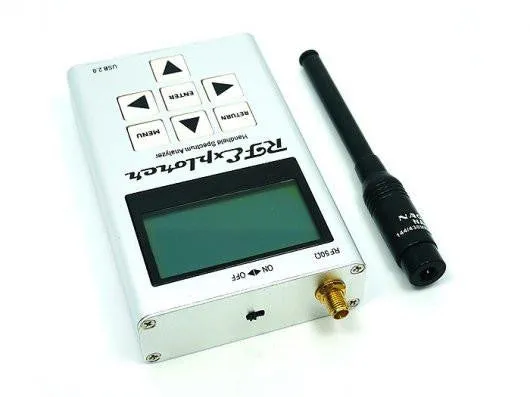

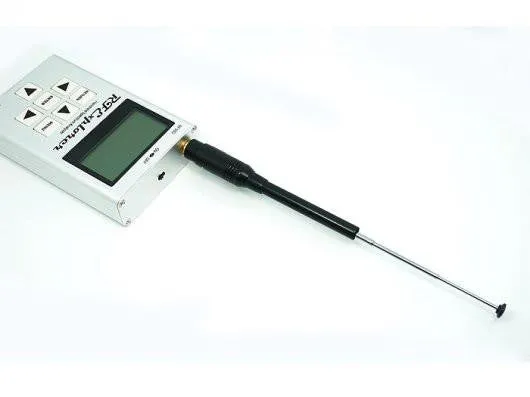

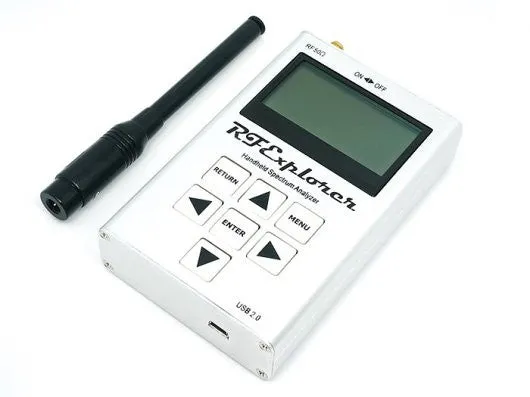

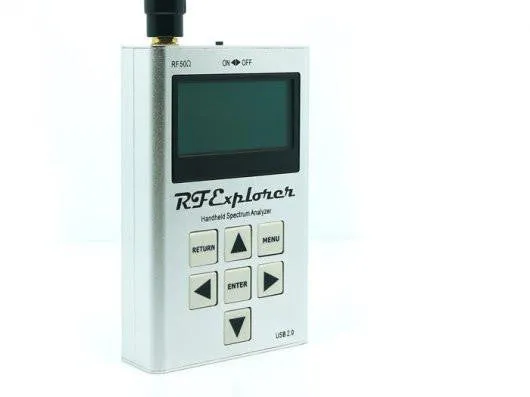

RF Explorer is a handheld digitalized spectrum analyzation tool, cost-effective and ideal for operations in the popular ISM frequency range. It features a highly integrated frequency synthesizer with an outstanding performance, plus a diminutive and energy-efficient design. Suitable for both indoors and outdoors, it can be hooked up to a PC via a mini-USB 2.0 connector for further capabilities. This unit comes with a Nagoya NA-773 wideband telescopic antenna.

Feature

Pocket size and light weight
Solid aluminum metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs of continuous run, rechargeable by USB
Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular sub-1Ghz ISM bands, including 315MHz, 433MHz, 868MHzand 915MHz, also including UHF TV, 70cm and 33cm HAM radio, GSM, etc. Any frequency from 240MHzto 960MHzis covered.

Important: Note this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available

Specification

Frequency band: 240 - 960 MHz
Frequency span: 112KHz - 100MHz
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight for great indoor visibility
Standard SMA 50 ohms connector, wideband Nagoya NA-773 telescopic antenna included
Amplitude resolution: 0.5dBm
Dynamic range: -115dBm to 0dBm
Absolute Max input power: 5dBm
Average noise level (typical): -110dBm
Frequency stability and accuracy (typical): -10ppm
Amplitude stability and accuracy (typical): -3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Weight: 185g
Size: 113x70x25 mm
