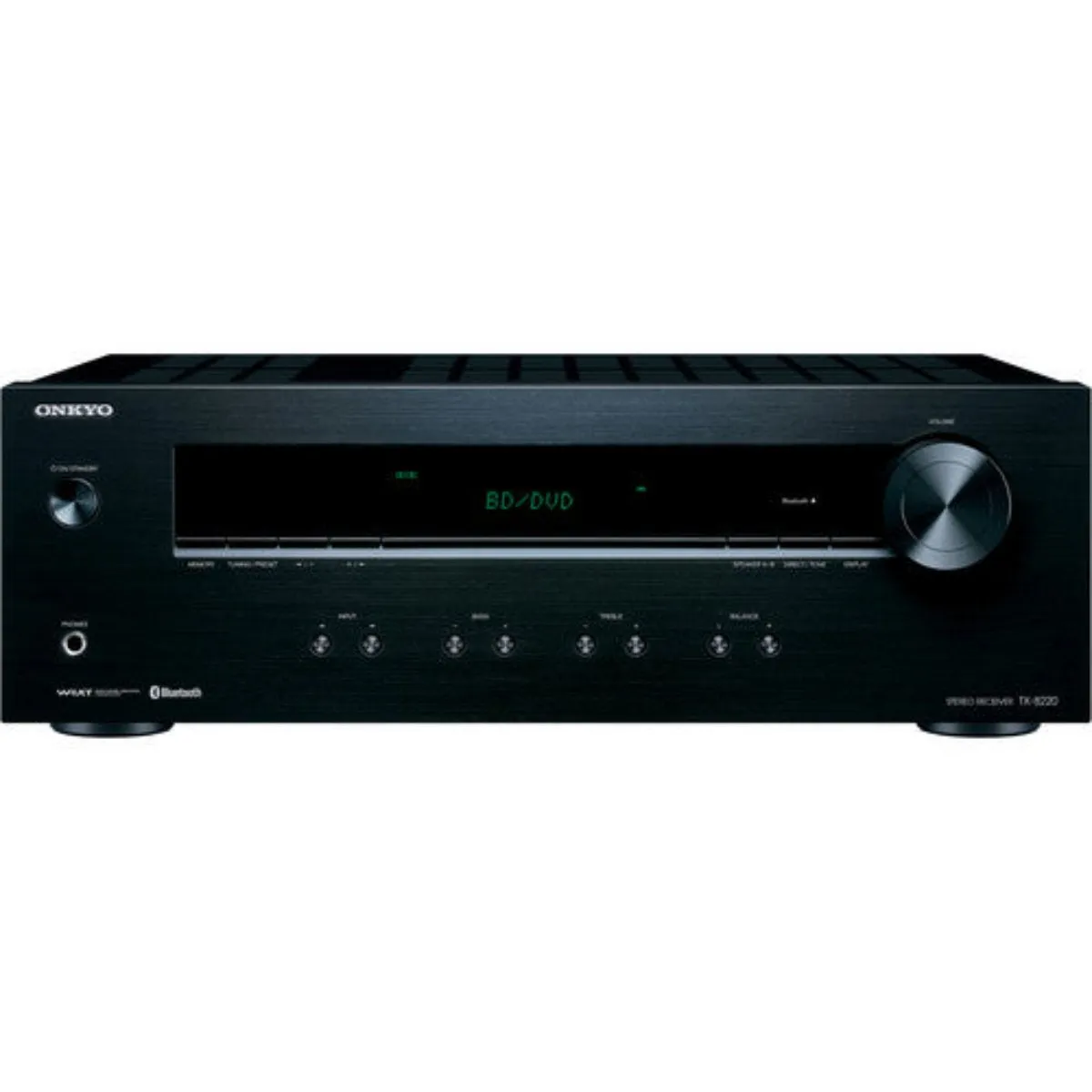

Product Details
＋
Enjoy powerful, room-filling sound with the Onkyo TX-8220, featuring WRAT amplifier technology and delivering 45W per channel at 8 Ohms. Stream music wirelessly via built-in Bluetooth or connect your favorite devices using digital coaxial, optical, RCA, or phono inputs. With its versatile connectivity and included remote control, the TX-8220 offers the perfect blend of modern convenience and robust audio performance.
Warranty:
1.5-year manufacturer's warranty
Features:
- Power Output up to 45W per Channel
- WRAT (Wide Range Amplifier Technology)
- Discrete Amp Output Stage Circuitry
- Optical & Digital Coaxial In
- 4x Stereo RCA, 1x RCA Phono In
- Subwoofer Pre-Out
- FM/AM Tuner with 40 Memory Presets
- Independent Bass/Treble/Balance Controls
Video Review:
Bluetooth Allows Mobile Audio to Fill the Room
With low-latency Bluetooth 4.1 wireless technology, you can stream almost any audio that's playing on your smartphone, tablet, laptop, or computer. The Auto Connect function helps make pairing and playing back your music quick and easy, with enhanced stability for a reduced loss in audio quality.
Enhanced Connectivity
The TX-8220 is equipped with inputs to connect a range of sources. Use Hi-Res Audio-ready digital audio inputs to route display or computer audio through to the speakers, line-level inputs for a CD player or DAC, and the MM phono input for your turntable. Enjoy room-filling reproduction of these as well as FM/AM radio and Bluetooth sources.
Designed for Hi-Fi Sound
Pair the TX-8220 with your choice of speakers to add high-fidelity sound to everyday entertainment, from streaming audio to TV programs, vinyl, and CD. Its discrete amplifiers, large EI transformer, and customized capacitors are engineered to deliver ample driving power with low distortion. A high current grips the speaker cones for accurate control, helping to restore vitality and detail to music. Non-phase-shift circuitry, meanwhile, aids in focusing the audio image.
High-Current, Low-Impedance Drive
Dynamic passages in music and film soundtracks can see impedance spike and dip dramatically for short periods. This can place up to 10 times the usual load on your amplifier, and if it can't meet power demands, sound quality suffers. Onkyo's high-current low-impedance WRAT (Wide Range Amp Technology) design uses an EI transformer to help drive your speakers accurately, even under heavy loads.
Technical Specifications:
| Amplifier | |
| Channels: | 2.1 |
| Power Output per Channel: |
2-Channel Driven: 45 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 100 W at 6 Ohms / 1 kHz / 0.1% THD |
| Dynamic Power per Channel: | 80 W at 8 Ohms (Front) 120 W at 4 Ohms (Front) 140 W at 3 Ohms (Front) |
| Frequency Response: | 10 Hz to 100 kHz 1/-3 dB (Direct Mode) |
| THD N: | 0.08% (20 Hz to 20 kHz, Half Power) |
| Speaker Impedance: | 4 to 16 Ohms |
| Audio Processing | |
| Auro 3D Support: | No |
| Connectivity | |

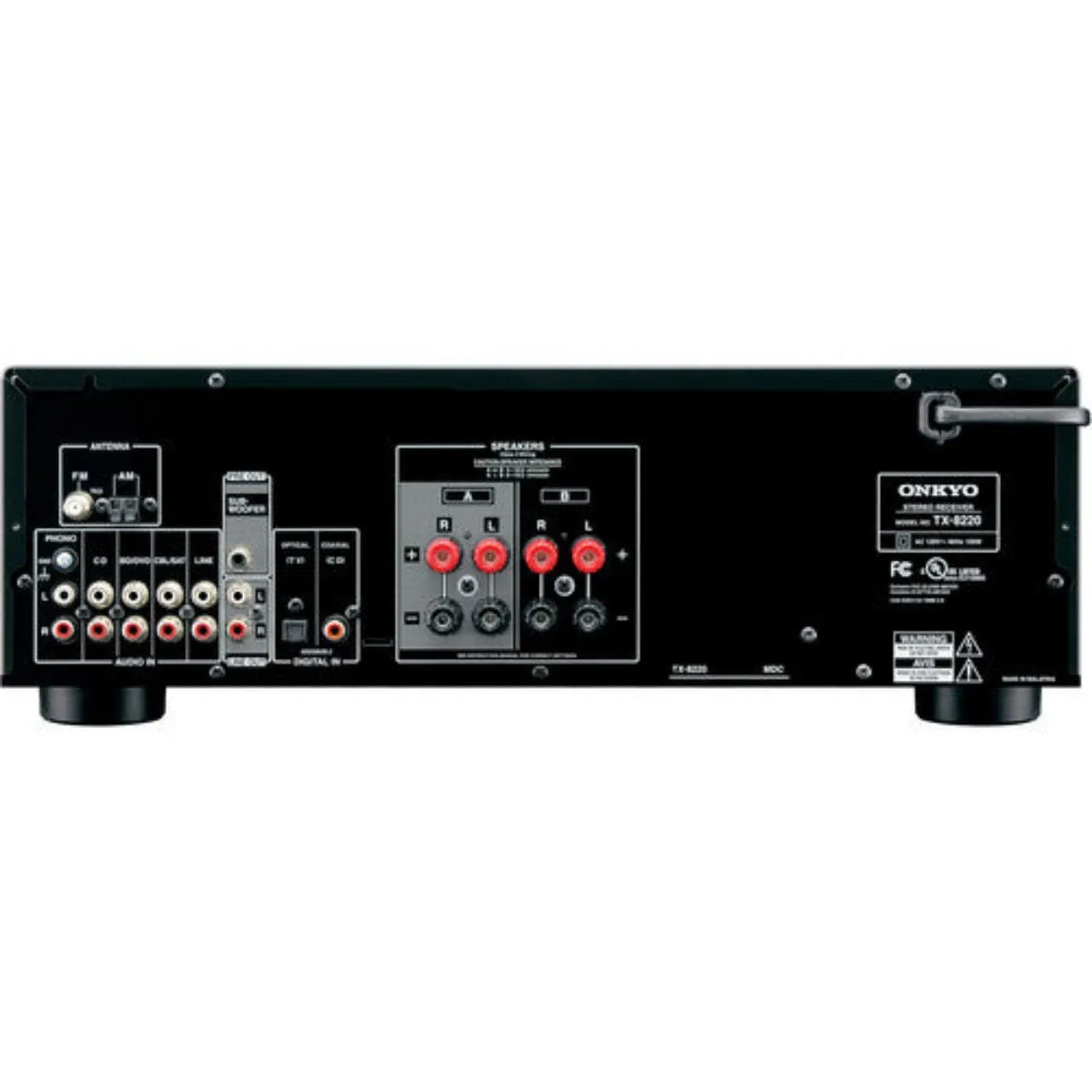

| Rear A/V Inputs: |
4 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw 1 x Digital Coaxial 1 x Optical TOSLINK |
| Rear A/V Outputs: |
1 x Stereo RCA 1 x RCA Subwoofer Pre-Out |
| Front I/O: | 1 x 1/4" / 6.35 mm Headphone Output |
| Other Rear I/O: |
1 x AM Antenna Terminal Input 1 x FM Antenna Terminal Input |
| Speaker Connectors: | 4 x Binding Post Pairs |
| Signal to Noise Ratio: | Line: 100 dB Phono: 93 dB |
| Wireless Connectivity | |
| Bluetooth: | 4.1 |
| Tuner Section | |
| Number of Tuner Presets: | 40 Stations |
| Radio Frequencies: | AM: 530 to 1710 kHz FM: 87.5 to 107.9 MHz |
| Power | |
| AC Input Power: | 120 VAC, 60 Hz |
| Power Consumption: | No Sound: 20 W Standby: 0.4 W |
| Physical | |
| Dimensions (W x H x D): | 17.1 x 5.9 x 12.9" / 435.0 x 149.0 x 328.0 mm |
| Weight: | 15 lb / 6.8 kg |
| Warranty Length: | Limited 2-Year Warranty |
| Packaging Info | |
| Package Weight: | 18.7 lb |
| Box Dimensions (LxWxH): | 21.5 x 14 x 9" |
