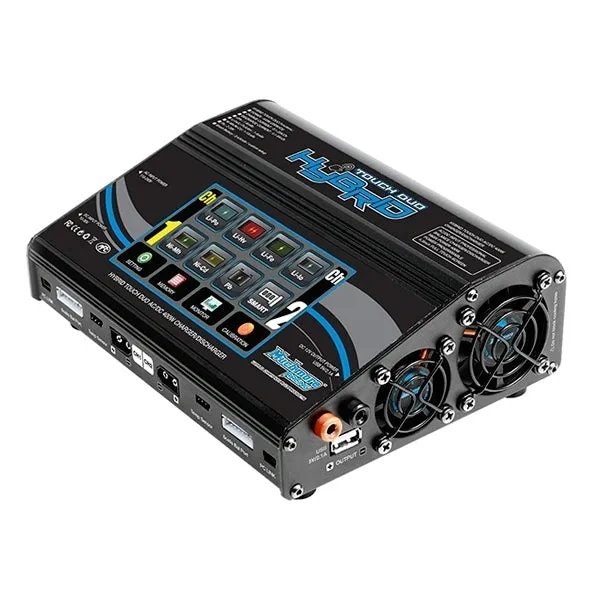

The Muchmore Hybrid Touch AC/DC Duo Battery Charger is ground breaking charger that features max 400 watts of power via dual 200 200 watt circuits allowing for simultaneous charging of two batteries up to each 20amps when used with a DC power supply. A 4.3 inch color touch screen makes it easy to navigate the menu, while SMART charging modes for DJI batteries, 8 memory slots for user presets and an internal resistance monitor provide useful functions that make this charger a great choice.
Features:
- HIGH SENSITIVITY ELECTRONIC 4.3inch FULL TOUCH COLOR SCREEN: Allows instant menu access with intuitive function. Efficient battery management function helps manage the battery in the best condition even during the race, as well as general driving.
- DC 12V OUTPUT / USB CHARGE PORT w/EUROPEAN STYLE OUTPUT: This product has a built-in power supply with 12V output. You can supply power to LED stand, Tire warmer, etc. USB charge port is built-in for charging smart phone or other USB devices.
- IC TEMPERATURE COOLING FAN: IC controlled cooling fans protect the charger from high temperatures.
- BATTERY MONITOR: Battery monitor allows you to check the resistance and cell deviation of each battery.
- DISPLAY: 4.3inch Full Color Touch Screen
- BUILT-IN AC/DC INPUT PORT: Hybrid Touch DUO charger features a built-in AC110~240V DC power supply. You can also use an outboard power supply, DC 10~30V.
Specifications:
Display: 4.3inch Full Touch Screen LCD
Compatible Batteries:
Li-Po / Li-Hv / Li-Fe / Li-Ion: 1-6 cells
Ni-Cd / Ni-Mh: 1-15 cells
Pb (Lead Acid): 2-20V
Smart Battery: TYPE-I / II / III
Sub Function: Balancer, IR Test
Memory: 8 User Memories
External Temp Socket: Futaba 3P Socket
Dimensions: 195x143x40mm (L x W x H)
Weight: 1,168g
Charge Power: 150W x 2 (AC input) / 200W x 2 (DC input)
Charge Current: 0.1-20A x 2
Balancing Current: 0.5A / cell
Discharge Power: 25W x 2
Discharge Current: 0.1-5.0A x 2
Smart Battery: 5-27V / 0.1-20A
AC Input: 110-240V
DC Input: 10-30V
USB Output: 5V / 2.1A
Included Cables:
- (2) Balancer Board
- (2) Multi Charge Cable
- (2) Smart Battery Charge Cable (DJI)
- (1) DC Power Cable
- (1) AC Power Cable
