Product Details
＋
Highlights
- Built-in amplifier (22 watts RMS/50 peak x 4 channels)
- Digital multimedia player with AM/FM tuner
- Plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
- 6.95" resistive touchscreen display
- Higher resolution Bluetooth music streaming from LDAC-equipped Android devices

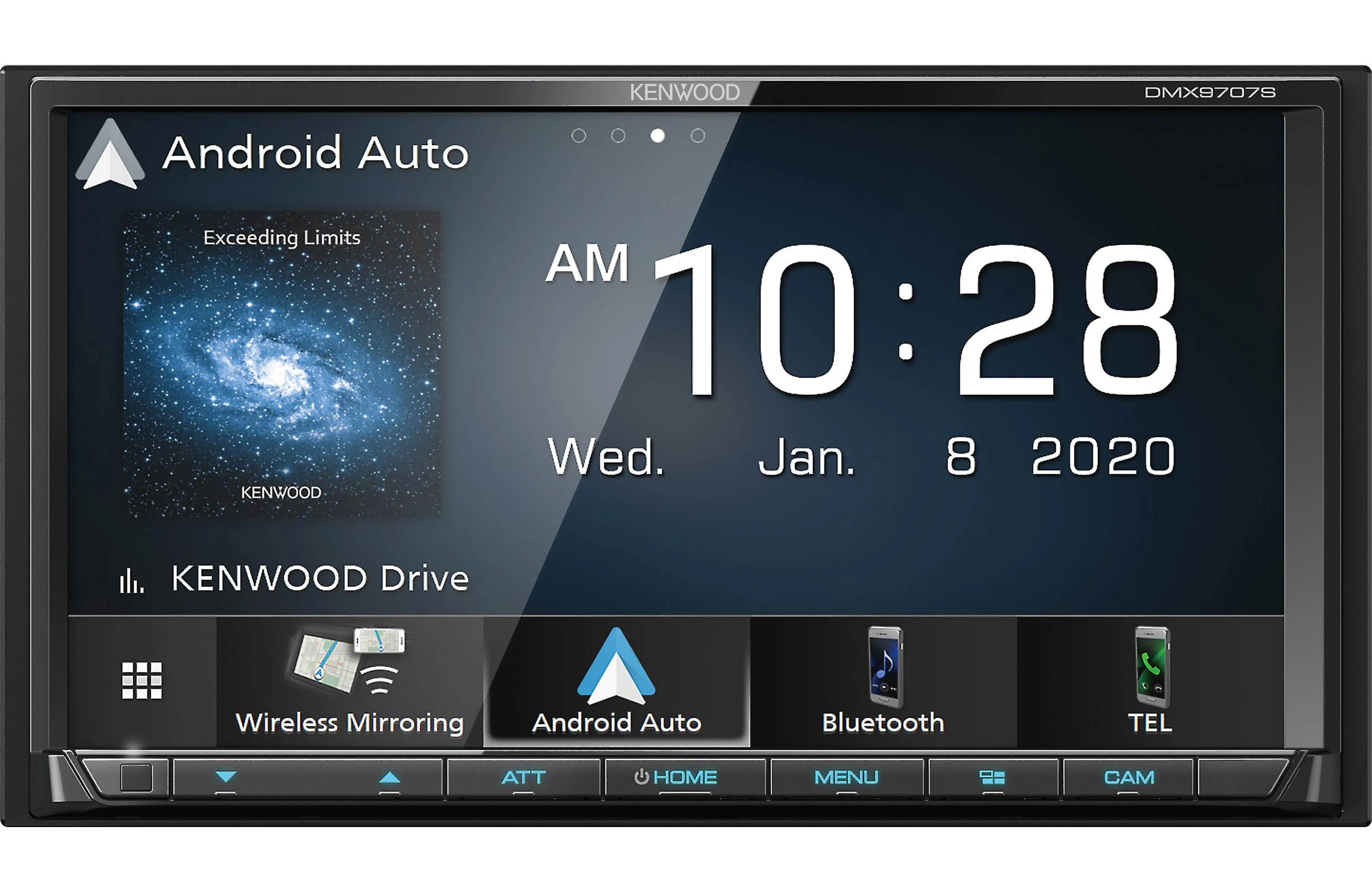

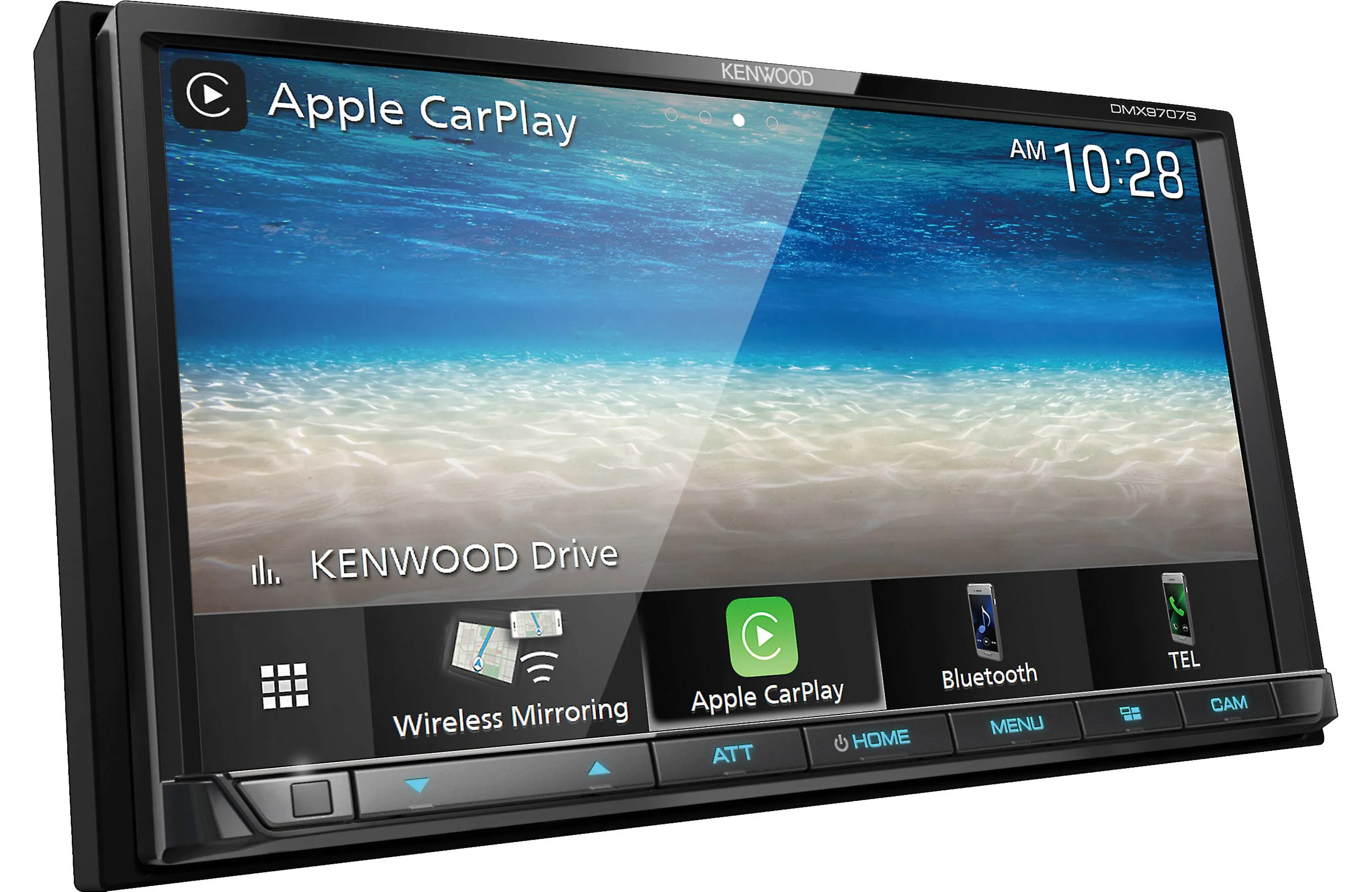

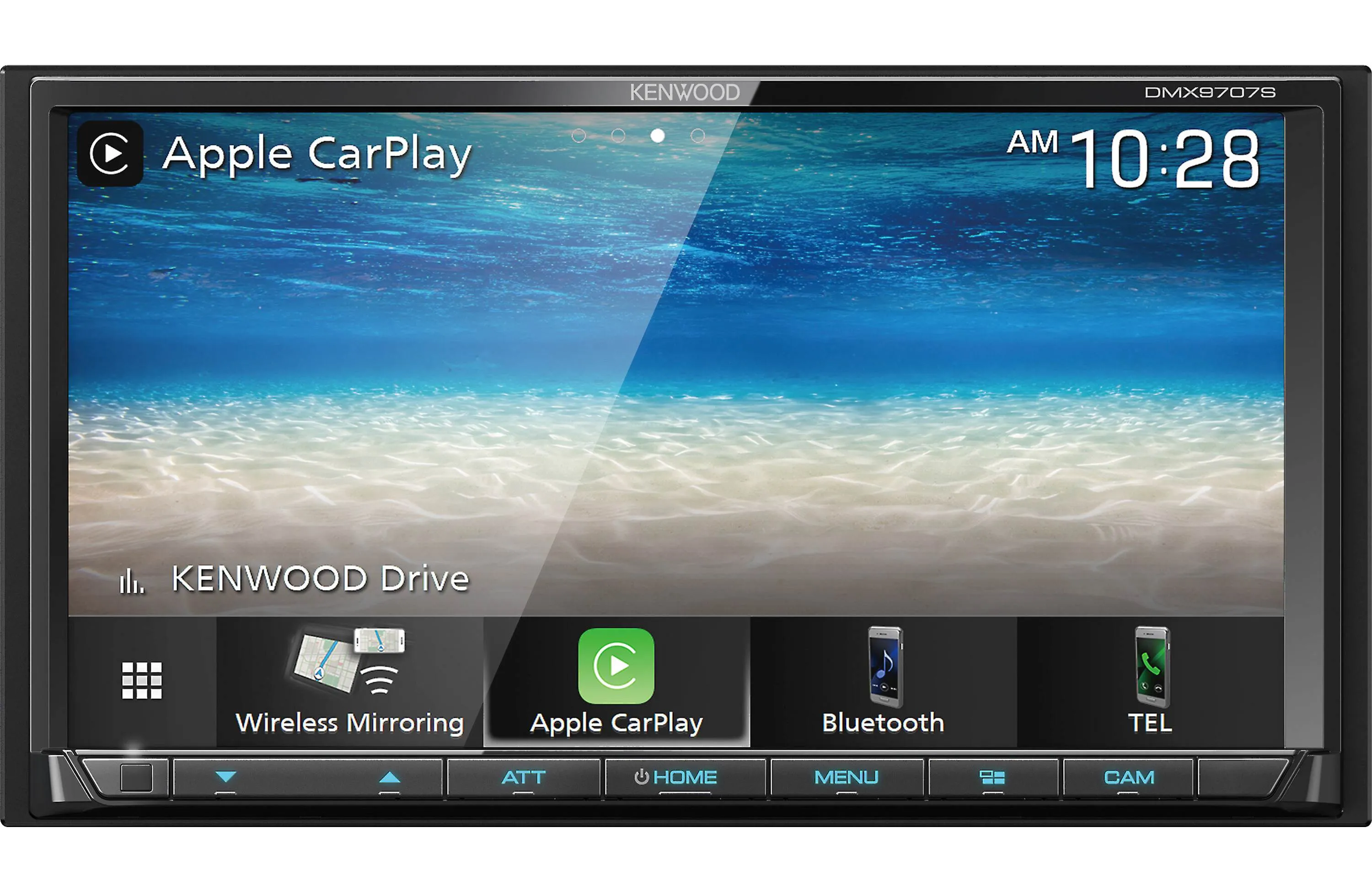

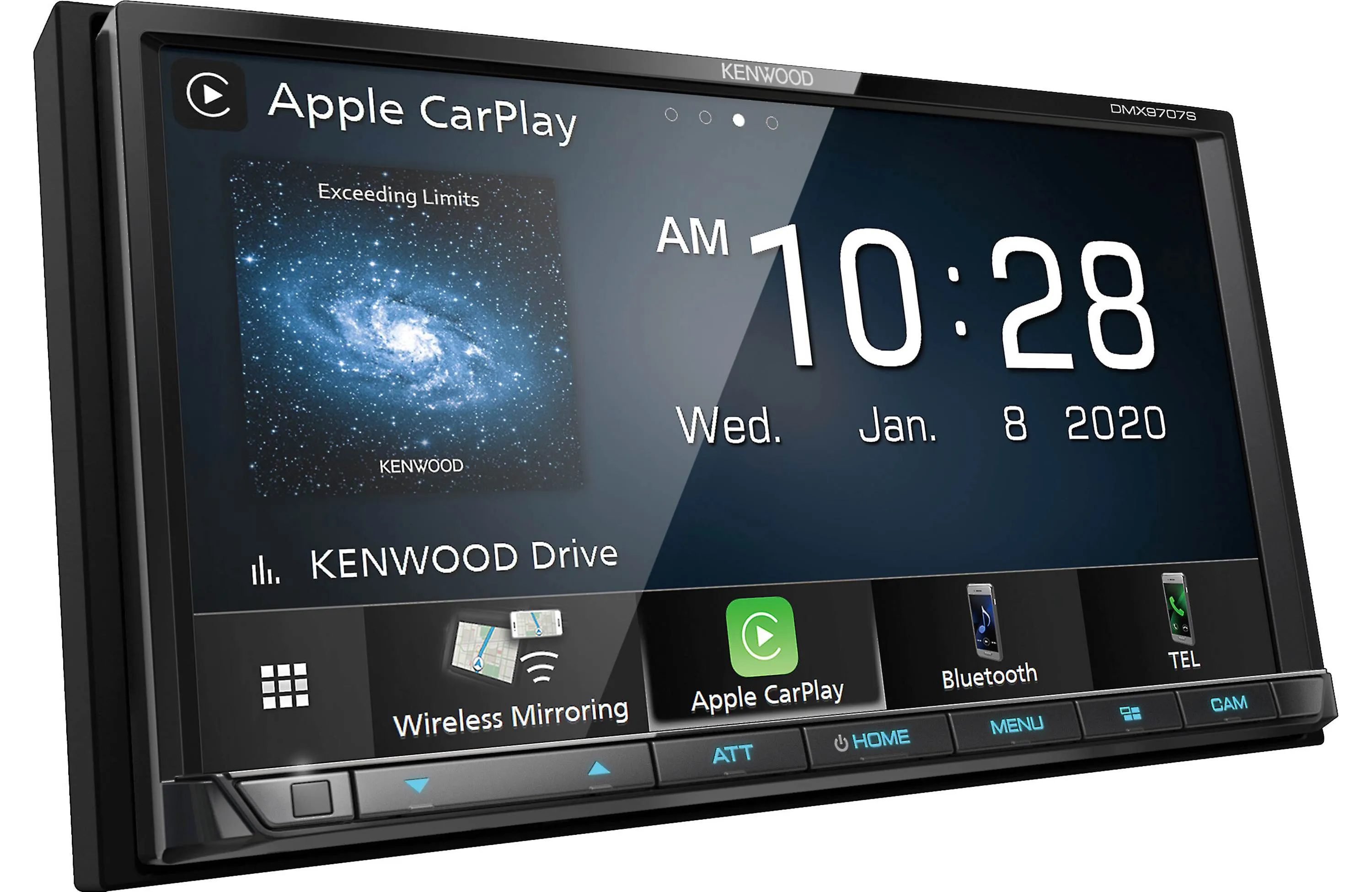

- Waze-ready with Apple CarPlay or Android Auto
- Electronic viewing angle display adjustment
- Fits double-DIN (4" tall) dash openings
- 13-band graphic EQ
- Drive EQ and digital signal processing
- 3-way crossover
Smartphone Features
| Apple CarPlay | Wireless Wired |
| Android Auto | Wireless Wired |
| iPhone Mirroring | Wired |
| Android Mirroring | Wireless |
- Dual Phone Connection
- Siri Eyes Free on select iPhones
- Google Assistant
- Built-in Bluetooth for Handsfree Calling
Expandability
- Compatible with SiriusXM satellite radio tuner

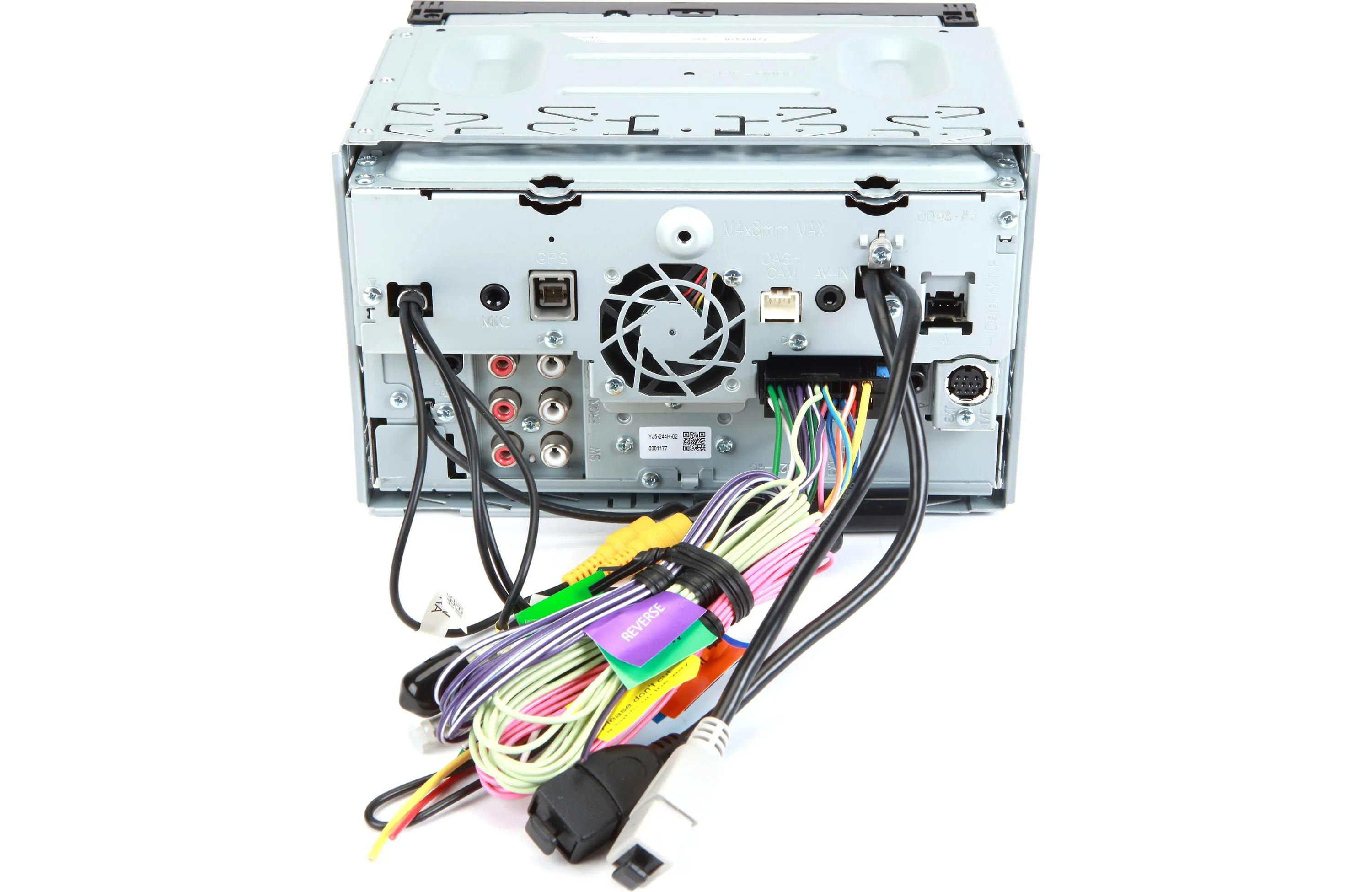

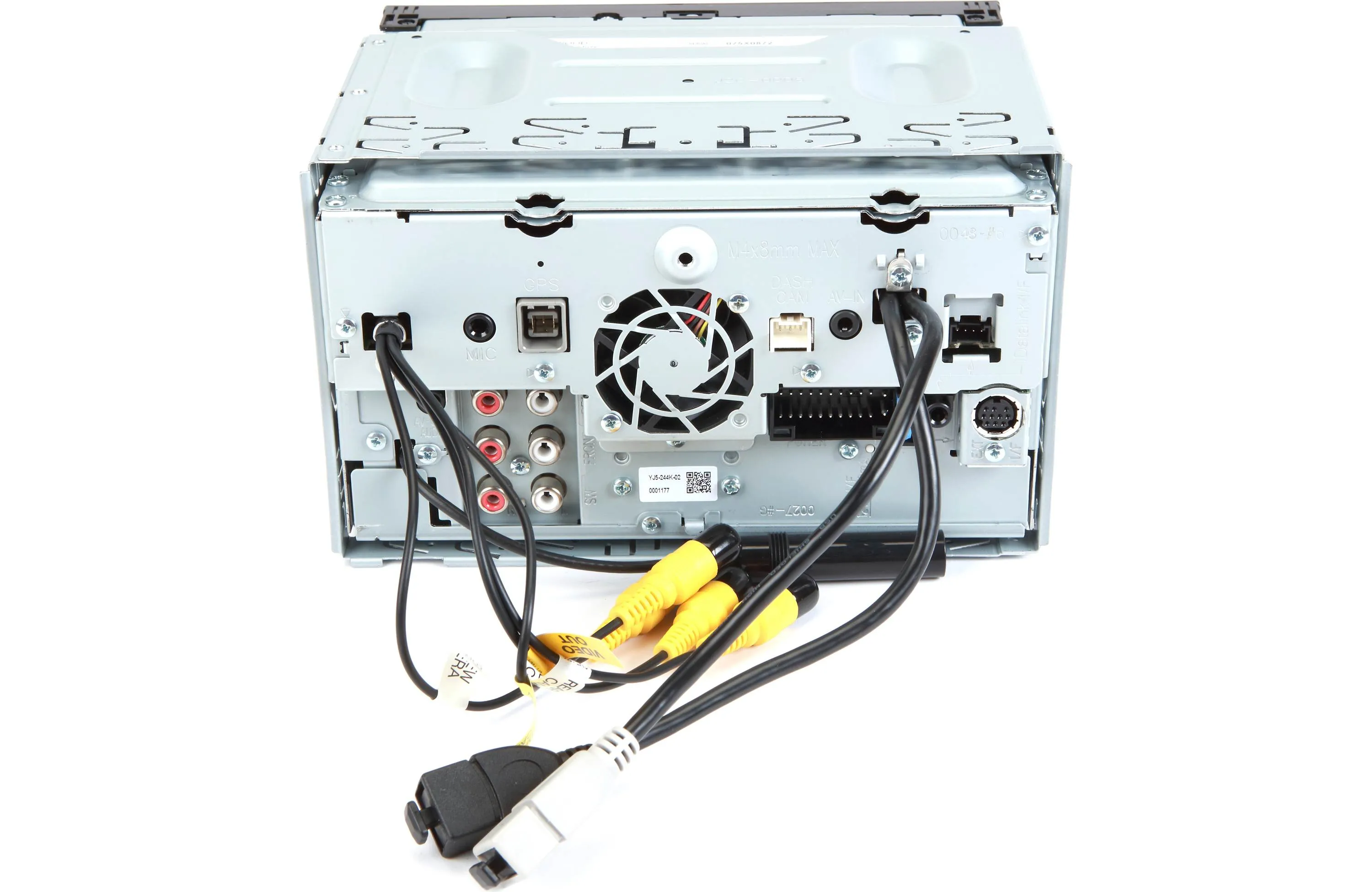

- Inputs: dual rear USB inputs, rear analog A/V input, four camera inputs including one HD-capable input, input for the DRV-N520 dash cam
- Outputs: rear analog A/V output, 6-channel preamp outputs (4-volt front, rear, sub)
- Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- Compatible with most factory steering wheel audio controls (adapter required)
Specifications
| AUX Input | Mini (rear) |
| Audio/video Input | Mini (rear) |
| USB Input | Rear (2) |
| Backup Camera Input | Yes |
| Second Camera Input | Yes |
| CarPlay | Wireless |
| Android Auto | Wireless |
| RMS Power | 22 watts |
| Peak Output | 50 watts |
| RMS Power Bandwidth | 20-20kHz |
| Preamp Output | 6-channel |
| Sub Preamp Outputs | Yes |
| Switchable Rear Preamp Outputs | No |
| Preamp Voltage | 4 Volts |
| Screen Size | 6.95" |
| FM Sensitivity | 9.3 dBf |
Measurement
| Weight | 3.75 (lbs) |
| Width | 11 (in.) |
| Length | 10.2 (in.) |
| Height | 6.9 (in.) |
