Product Details
＋

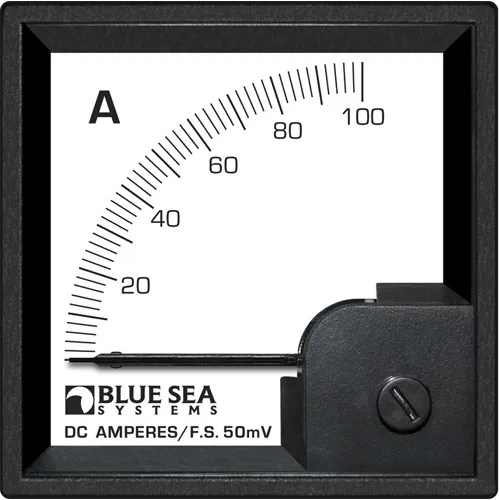

- Standard European 72mm design
- White matte dial with black printed scale and knife-edge pointer
- Backlit meter face (separate 12 or 24V DC backlight connections)
- Terminal cover included to prevent accidental short circuit
- Includes appropriate external DC shunt, when required
Specifications:
Meter: Voltage
Function: 0-100A
Backlighting Amperage: 16mA @ 12V DC 20mA @ 24V DC
Connection: 2 wire to DC positive and negative
Meter Current: 1mA at full scale
Shunt Type: External 50mV@full scale
Weight: 0.53lb (0.24 kg)
