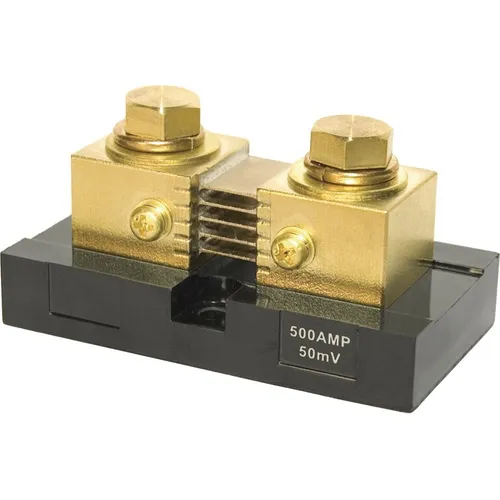

Product Details
＋
- For use with DC Ammeters
- For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions
Specifications:
Continuous Duty: 66% of Rated Current
Full Scale: 50 Milivolts
Intermittent Duty: 300% @ 3 Seconds/100% @ 5 Minutes
Ratio: 500A DC/50mV DC
Recommended Torque: 7 in-lb (0.79 N∑m) Brass Fittings/190 in-lb (21.47 N∑m) M10 Bolts
Shunt Type: Resistive, Manganin Metal Element
Weight: 0.71lb (0.32 kg)
