This board is designed to plug into an Arduino Mega 2560, which provides the computing power needed to control the motors, thermistors, end stops, and other components. Additionally, it includes sockets for stepper motor drivers, making it easy to replace or upgrade them. The modular design also allows easy integration of peripherals like LCDs, SD cards, and more.

Key Features:

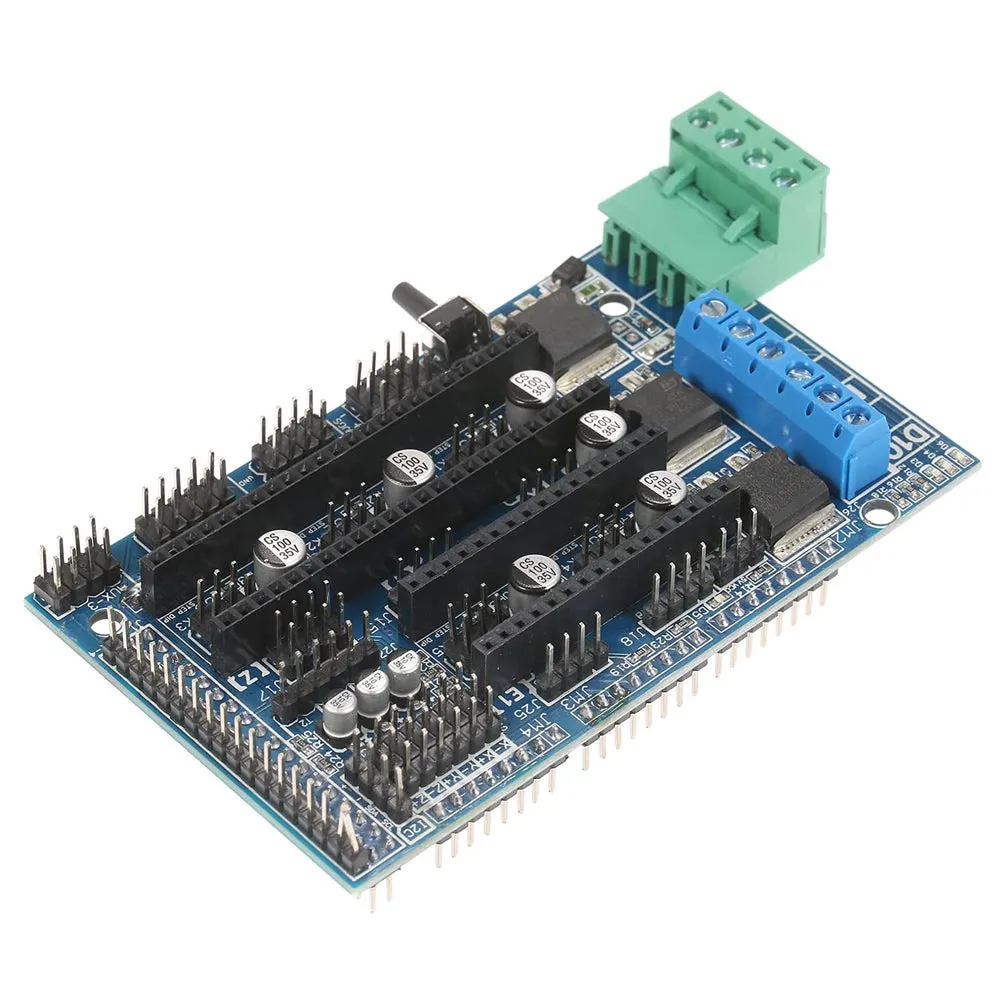

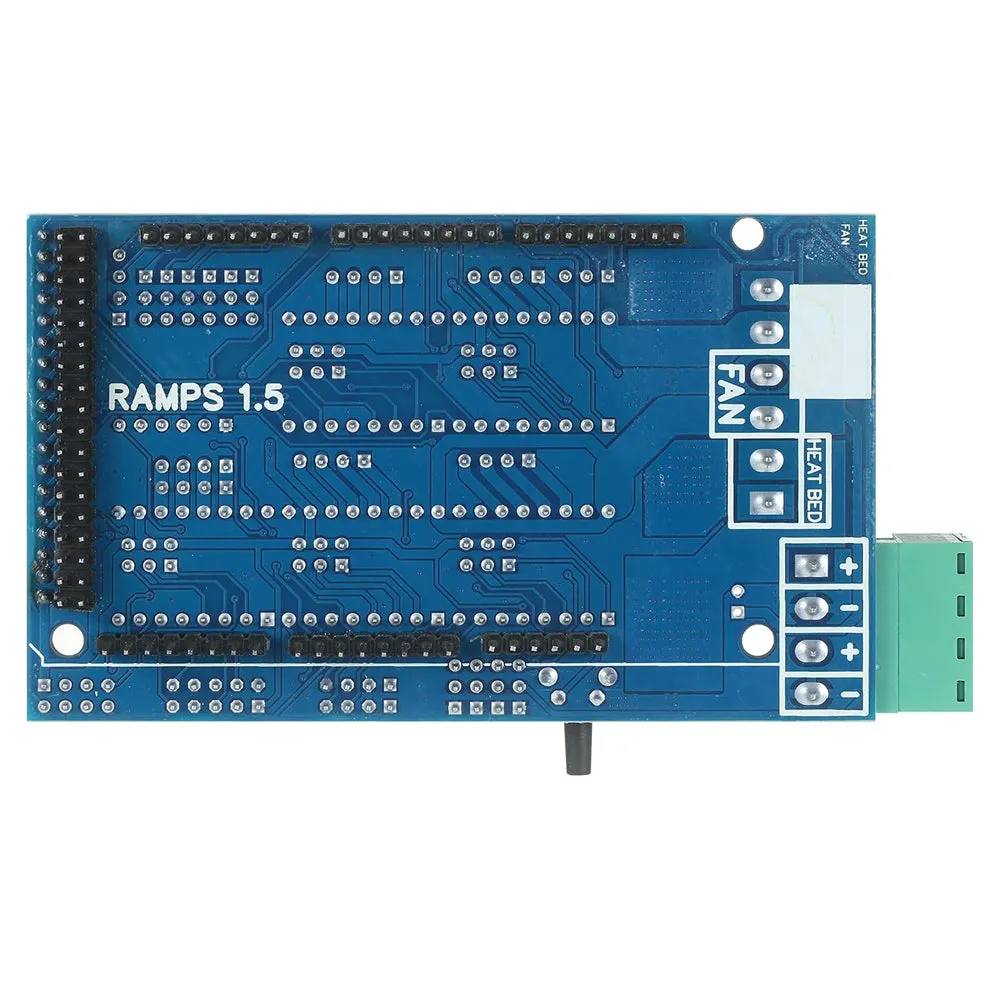

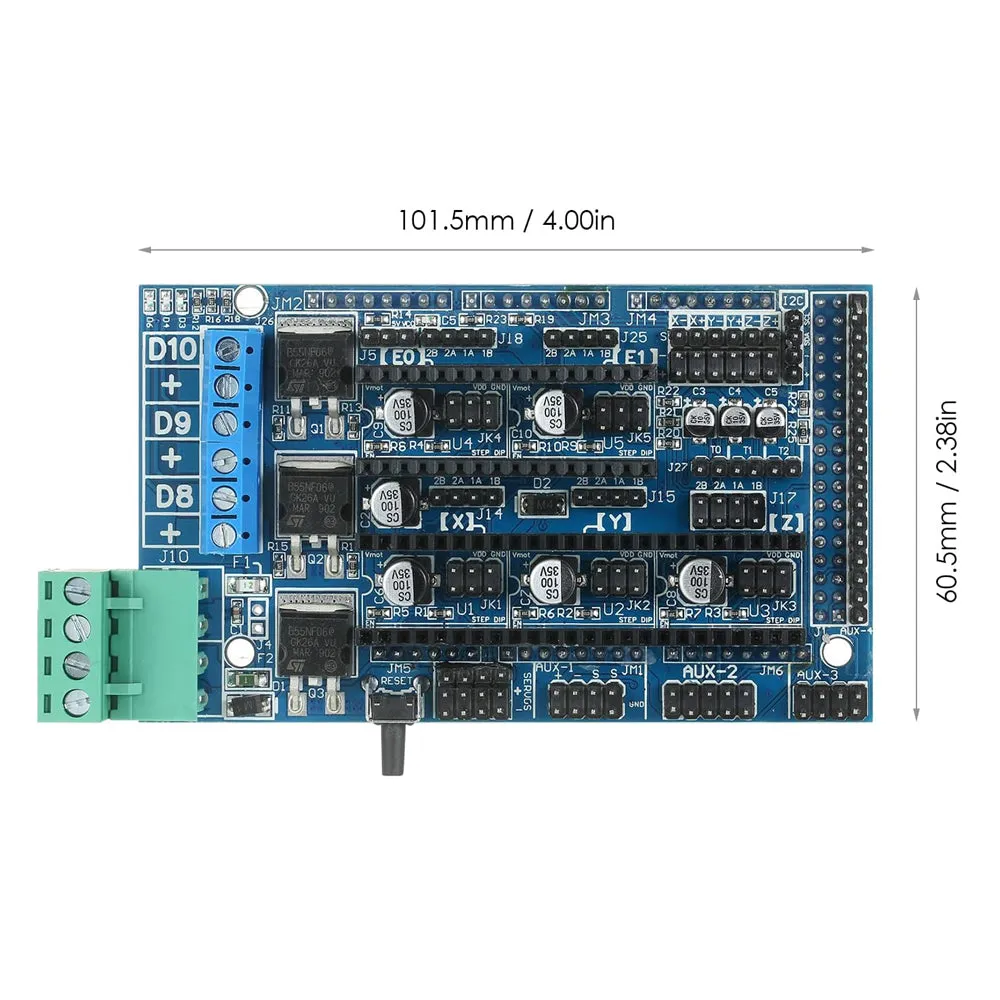

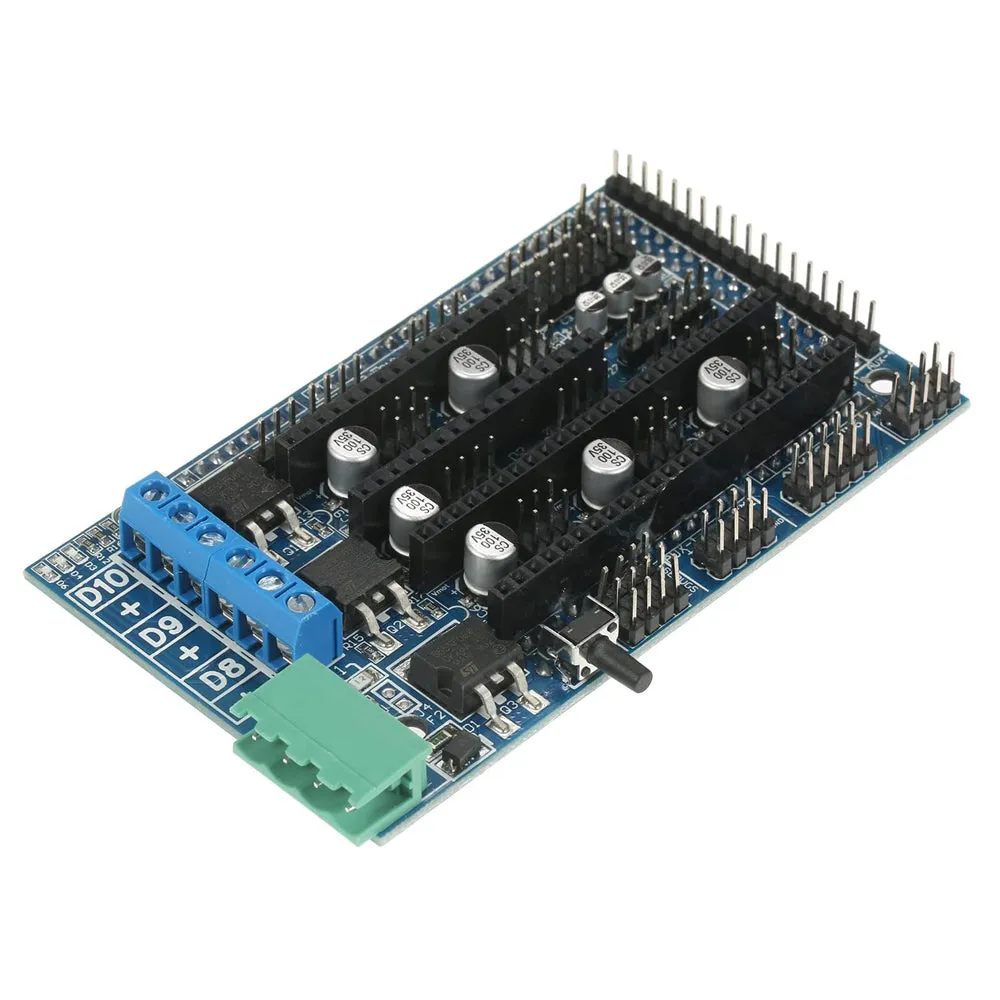

Name: 3D Printer Controller Board RAMPS 1.5 RepRap Prusa Model
SKU: 2246140

Enhanced Stability: Redesigned with improved heat dissipation and component protection.

Modular Design: Stepper drivers can be replaced or upgraded easily.

Multiple Extruders: Capable of supporting dual extruders, allowing for multi-color or multi-material printing.

MOSFET Control: High-power MOSFETs ensure safe and reliable power for the heated bed and extruder.

Standalone Printing: Easily connects to an LCD screen and SD card reader for printing without a computer.

Applications:

RepRap and Prusa 3D Printers: Ideal for DIY 3D printers, especially those following the RepRap or Prusa designs.

CNC Machines: Can be adapted for CNC or laser engraving applications.

Multi-Extruder Setups: Perfect for projects requiring multi-material or multi-color prints.

Technical Details

Input Voltage: 12V-24V
Stepper Driver Slots: 5 slots for Pololu A4988 or DRV8825 stepper drivers
MOSFETs: High-power MOSFETs for controlling heated bed and extruder
LCD Interface: Supports connection to LCD and SD card reader for standalone printing
Endstop Connections: 6 endstop connectors (3 for min and 3 for max positions)
Heated Bed Control: Included MOSFETs for safe and reliable bed heating
Firmware Compatibility: Marlin, Sprinter, Repetier, etc.
